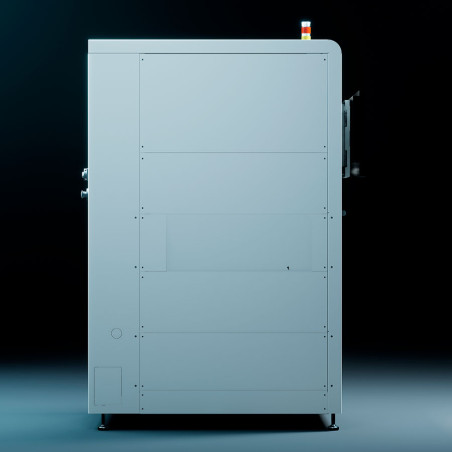

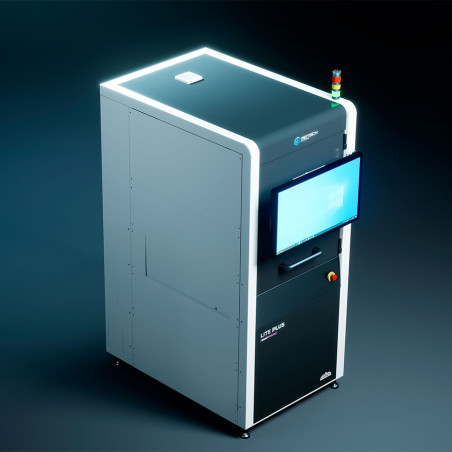

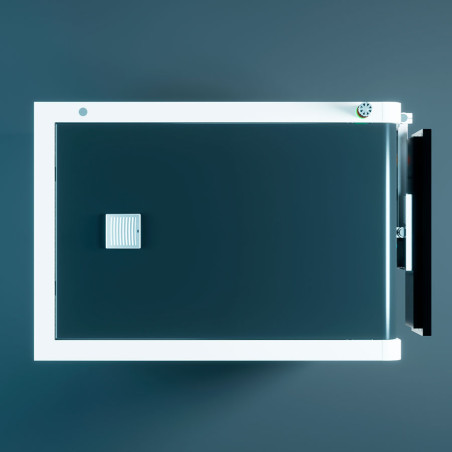

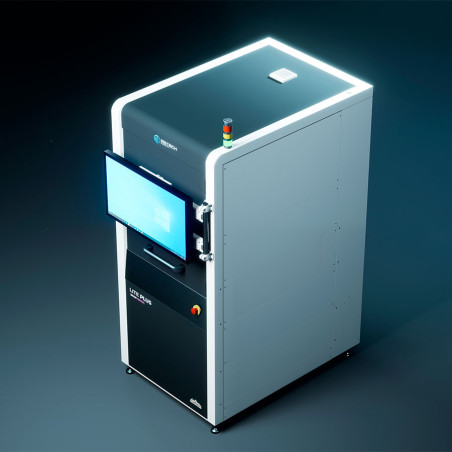

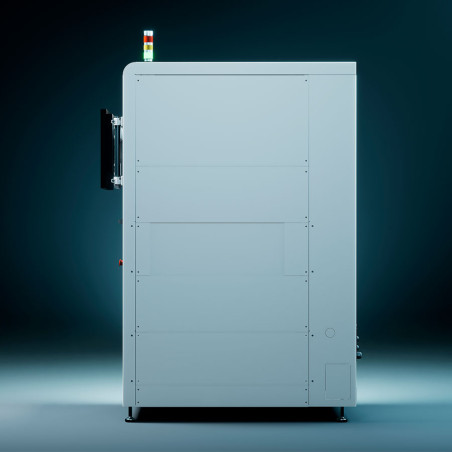

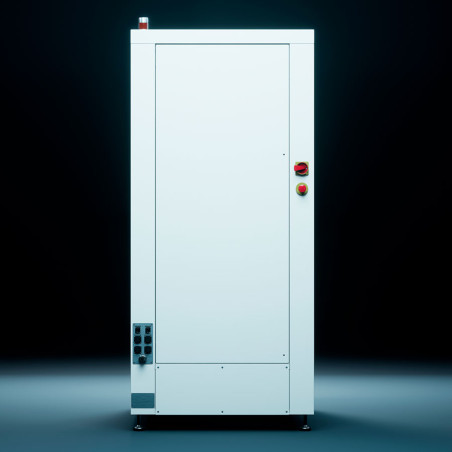

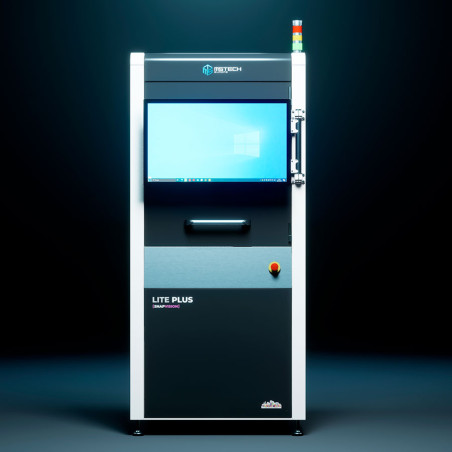

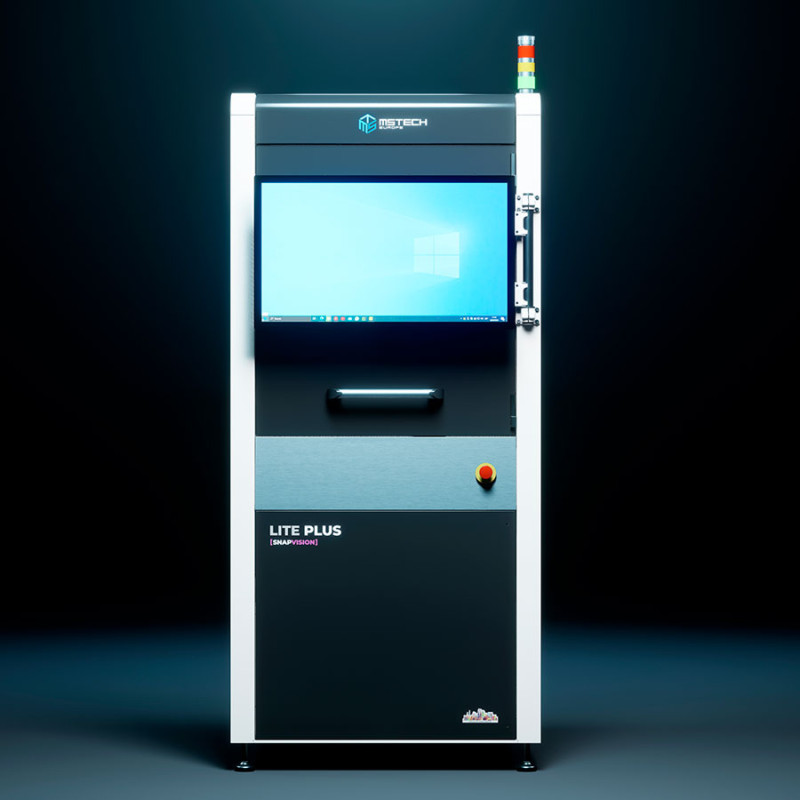

LITE PLUS [SNAPVISION]

LITE PLUS_SV
Multi-purpose vision system for integration into an existing line
Dimensions: 90 x 214 x 128 cm
Weight: 415 kg
Delivery time: 90 days
Log in for a quote
Super-fast 2D AOI/ACI inspection and image analysis with advanced capabilities, including film thickness trend capability, for coating and dispensing.

FEATURES

■ Resolution standard down to 40 um.
■ Standard FOV up to 530 x 400 mm.
■ Intuitive programming UI.
■ Complete inspection time below than 4 sec. (Depending on FOV).
■ Traceability reading while inspection.
■ Code Reading: DataMatrix, QR codes.
■ UV traceable.
■ Thickness trend capability.
■ Light source: multi-LED illumination.
■ No periodical calibration of camera needs.
■ AI based diagnostic.
■ Industry 4.0 MES/FIS and data sharing.
Signal (protocols)
SMEMA
Voltage
230 VAC
Power
2.5 kW
Flow direction
left-right (optional right-left)
Edge clearence
5 mm
Conveyor type
Belt
Chain
Component clearence
150 mm top and bottom
Volumen
2.47 m³
Largo
1280 mm
Ancho
900 mm
Alto
2148 mm
Peso
415 kg
