OUR DEPANELING SOLUTIONS

LASER

INLINE ROUTER

OFFLINE ROUTER

LASER

BEST CUTTING QUALITY AND EXCELLENT PERFORMANCE.

The singulation of PCB boards is carried out using a laser source, allowing for work with hybrid PCBs (FPCB, rigid-flex PCB). This ensures superior stress-free cutting compared to contact-type routers (100um -> less than 30um), and enables cutting of PCBs with complex shapes. Additionally, it minimizes particles thanks to non-contact cutting.

Advantages at a glance

  • Use various laser sources such as UV, Green, IR, etc.
  • Cutting materials: FR4, FPCBs, Kapton, etc.
  • Pin Table, production fixture.
  • Full-cut process. Supports highly populated PCB panels.
  • Clean process for particle and fume removal.
  • No milling vibrations induced
  • FIS/MES connectivity

LASER PLATFORMS

LASER DEPANELING

LS-NUN

INLINE ROUTER

OUTSTANDING FEATURES ENSURE SAFE PERFORMANCE

Its highly accurate and smooth cutting processes prevent damage to surfaces, assembled parts, and components. Additionally, Depanelist meets all customer expectations and requirements without limitations. MSTECH delivers outstanding depaneling systems to satisfy the diverse needs of our customers.

Advantages at a glance

  • Twin shuttle table.
  • Twin bit capability including independent motion
  • Mixed production.
  • Automatic pitch adjustment by AC servo.
  • Multi-bit function.
  • Camera teaching (fiducial).
  • Bit check sensor.
  • Bit lifetime management.
  • ID verification by fingerprint.
  • Cutting mode select.
  • ESD: Ionizer, door, fixture, and ground.
  • FIS/MES connectivity

INLINE ROUTER PLATFORMS

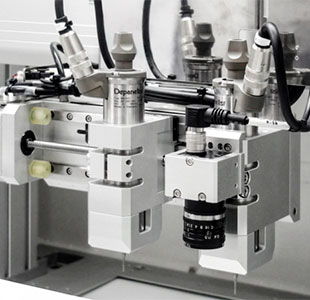

iDPL-T (Twin)

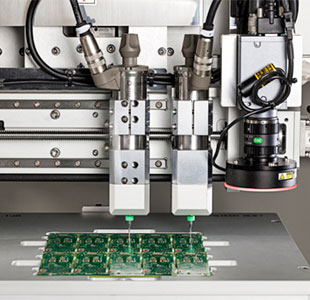

iDPL-S (Single)

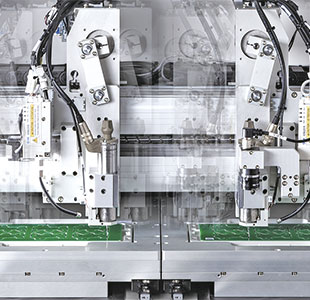

iDPL-TM Moebius

iDPL-E Moebius

OFFLINE ROUTER

ULTRA HIGH PERFORMANCE & NEW CONCEPT ROUTER

ncludes handling and post-routing management of the singulated PCBs and skeleton.

Advantages at a glance

  • Twin shuttle table.
  • Twin bit capability including independent motion.
  • Mixed production.
  • Automatic pitch adjustment by AC servo.
  • Multi-bit function.
  • Camera teaching (fiducial).
  • Bit check sensor.
  • Bit lifetime management.
  • ID verification by fingerprint.
  • Cutting mode select.
  • ESD: Ionizer, door, fixture, and ground.
  • FIS/MES connectivity

OFFLINE ROUTER PLATFORMS

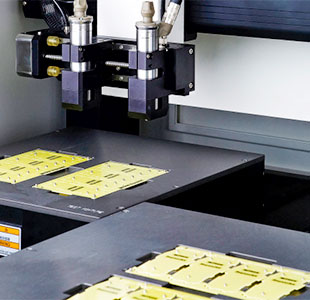

iDPL-T (Twin)

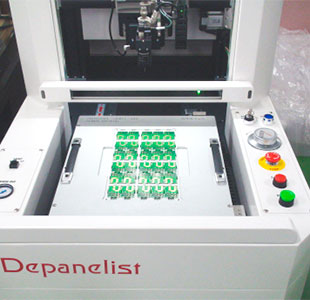

iDPL-S (Single)

iDPL-TM Moebius
