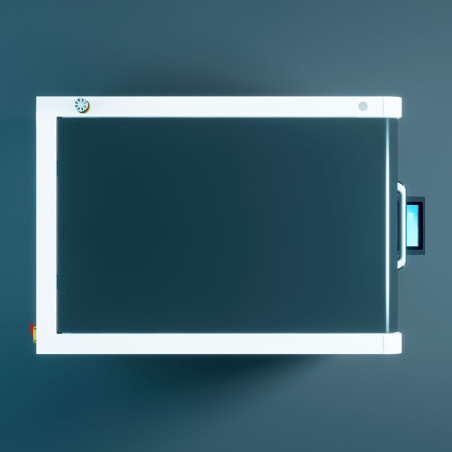

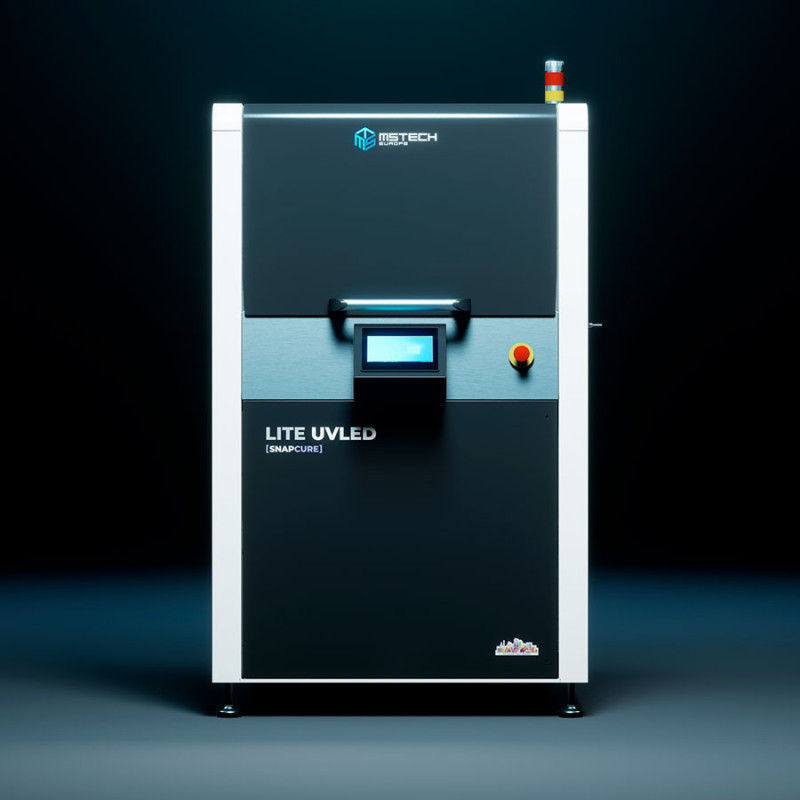

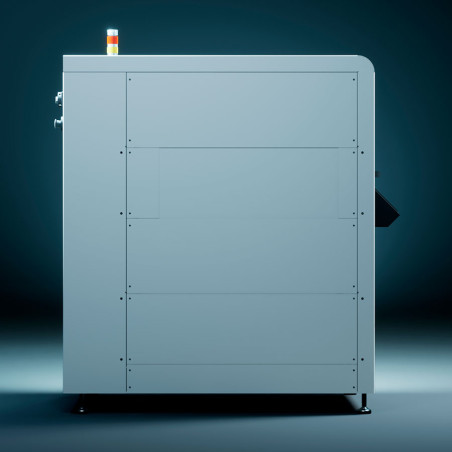

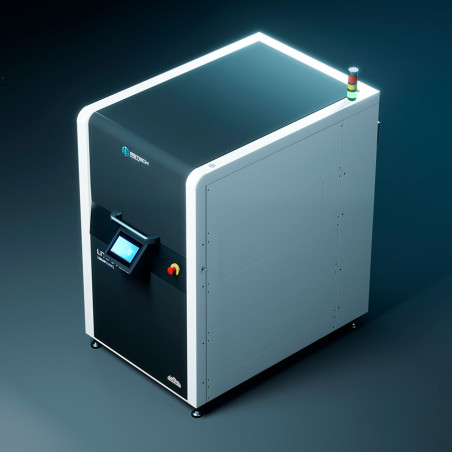

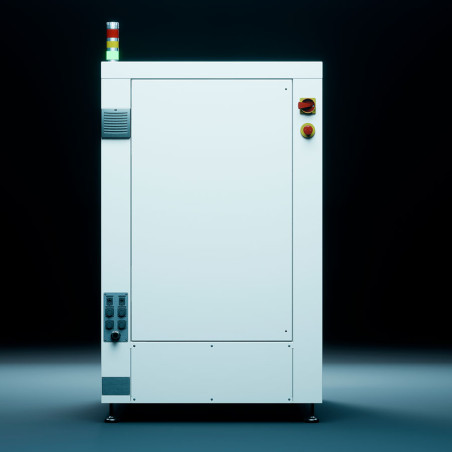

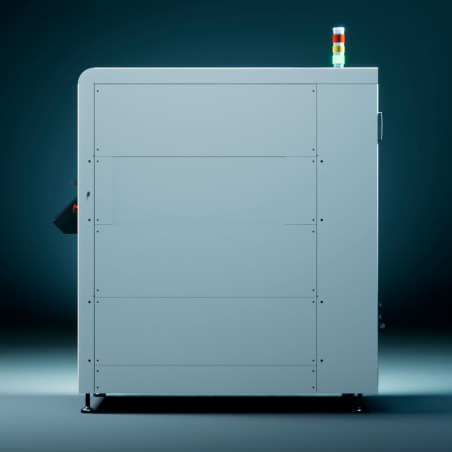

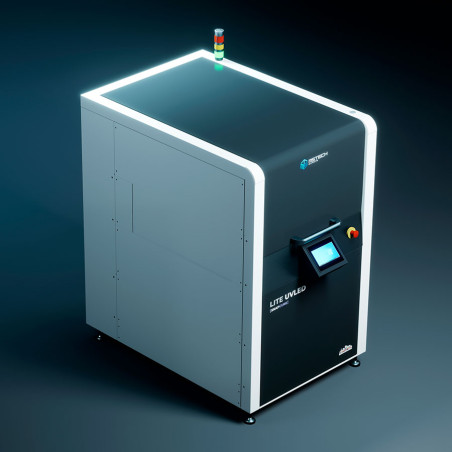

LITE UVLED 365 [SNAPCURE]

The UV Irradiation Source has world best efficiency using high power UV LED panel. It is available either as UV single frequency or as multifrequency spectrum from 265 nm toward 405 nm.

FEATURES
■ Curing Area: 500x400 mm.
■ Curing Side: Top or/and bottom.
■ Curing Distance: Up to 150 mm.
■ Lamp: Efficient impingement lamp cooling.
■ Power Intensity: 300mW/cm2 at 50 mm distance from Substrate.
■ No warmup required.
■ Lamp lifespan: approx. 20.000 hours equivalent to 1.000.000 production hours.
■ Electric Power Consumption: 1800 W.
■ Patented curing technology.
■ 2 power irradiation outputs.
■ Frequencies 365 nm.
■ Easy setup & stable process.
■ Cooling method: Fans cooling.
■ Maintenance free
■ Highly attractive COO/TCO.
