LITE NG BUFFER

LITE NG BUFFER
GOOD/ NG BOARD CONTROL.

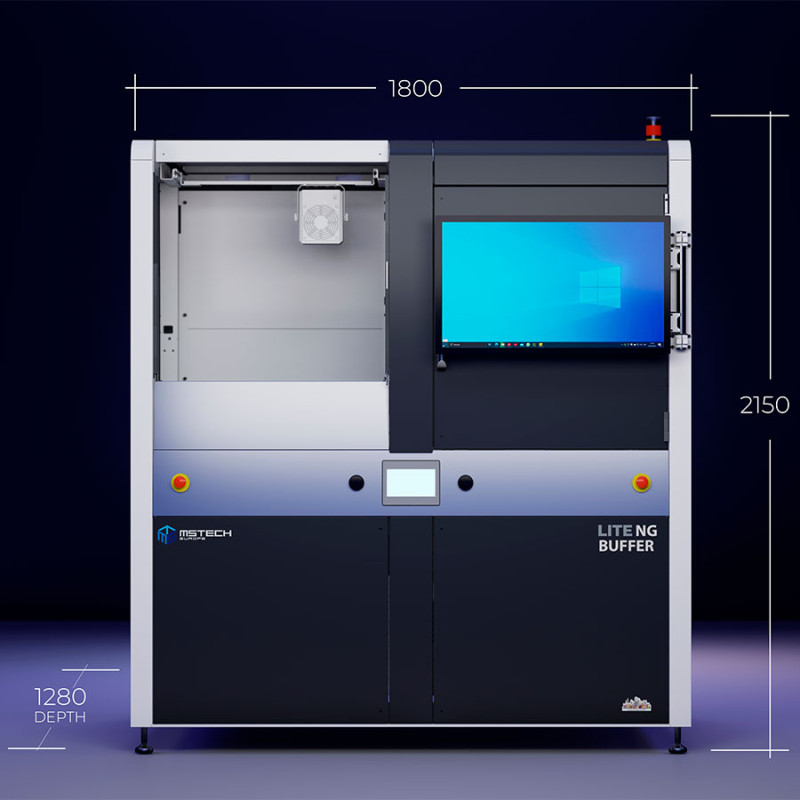

Dimensions: 180 x 215 x 128 cm
Weight: 926 kg
Delivery time: 90 days
Log in for a quote

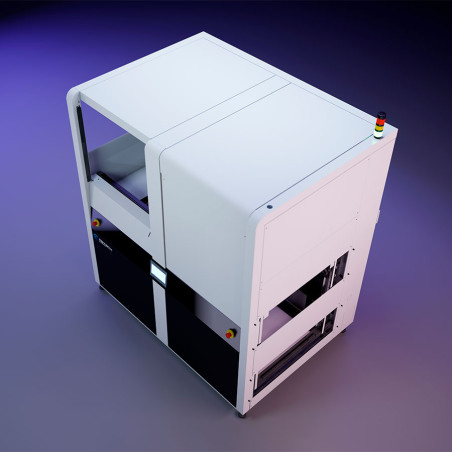

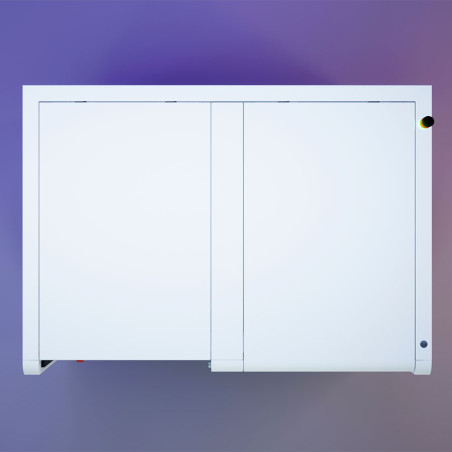

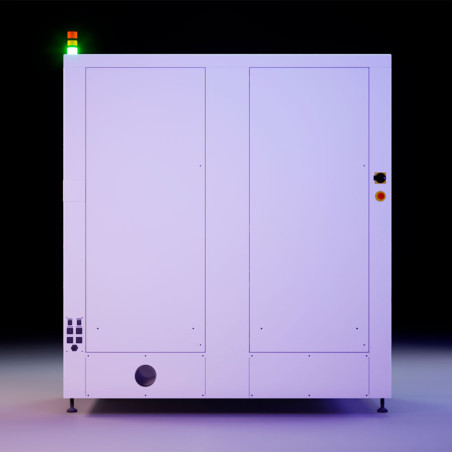

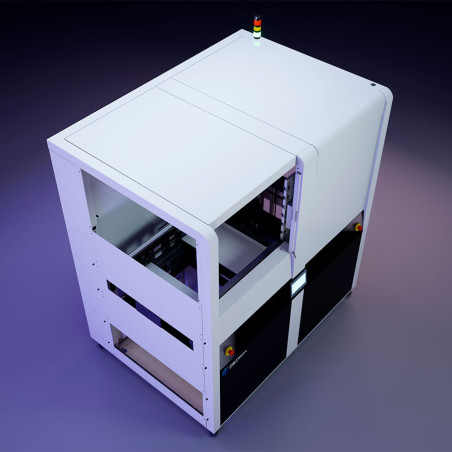

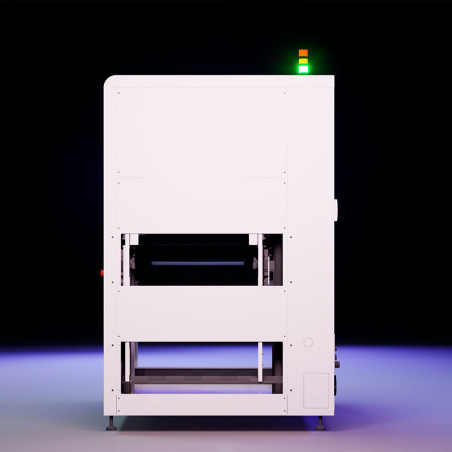

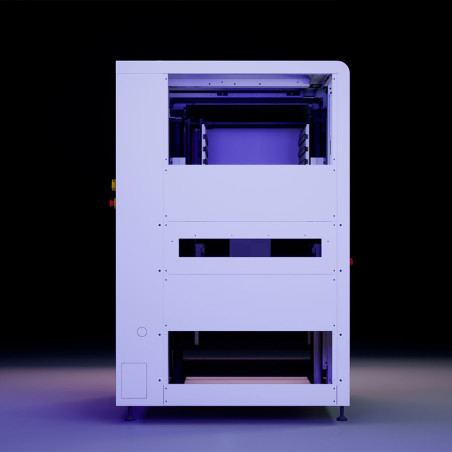

The LITE NG BUFFER is designed to be installed at the rear of an inspection machine. It automatically discharges good PCBs to the next process, while loading NG (defective) PCBs onto a dedicated
rack located on the upper conveyor. This allows operators to easily access and repair defective boards, improving efficiency and ensuring process stability.

» PLC control for reliable automation.
» Total storage 5 slots 75 mm picht each.
» LCD touch panel for easy operation.
» Individual lift rack operation.
» Repair zone (upper conveyor) for NG PCBs.
» Safety-oriented design.
» Improved productivity with stable quality.
» User-friendly interface.
Signal (protocols)
SMEMA
Voltage
230 VAC
Power
2.5 kW
Flow direction
left-right (optional right-left)
Edge clearence
5 mm
Component clearence
150 mm top and bottom
Volumen
4.95 m³
Largo
1280 mm
Ancho
1800 mm
Alto
2150 mm
Peso
926 kg
