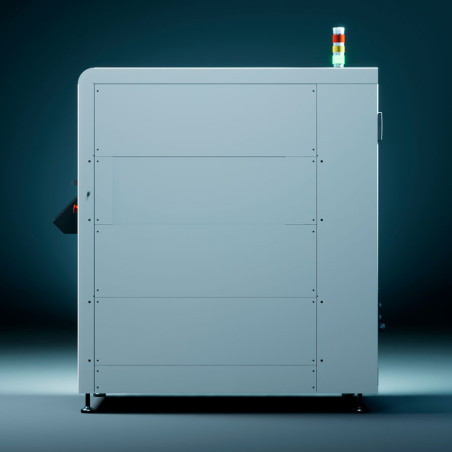

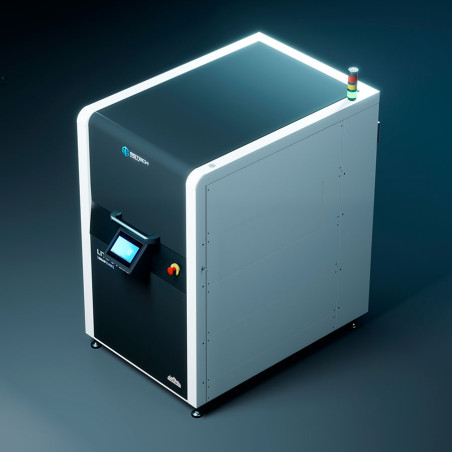

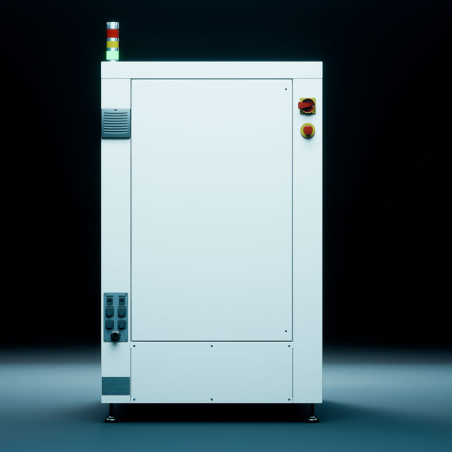

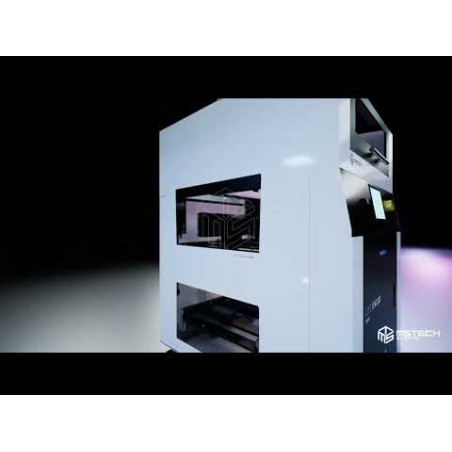

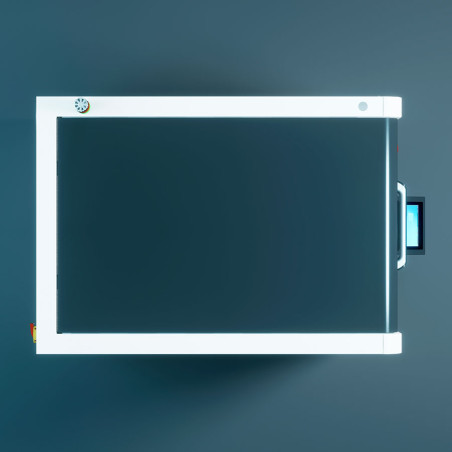

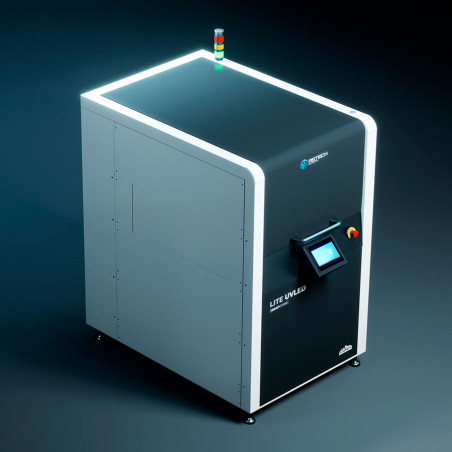

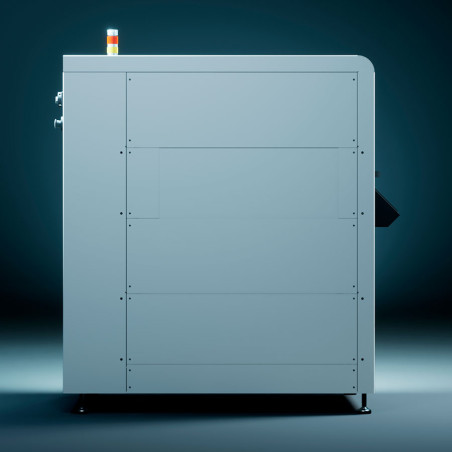

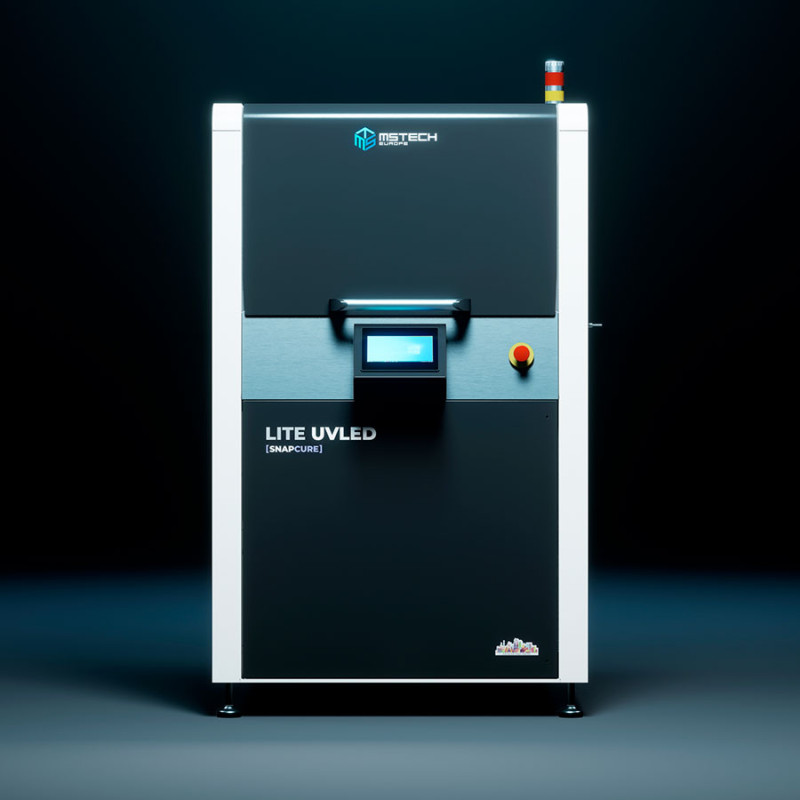

LITE UVLED MULTIFREQUENCY [SNAPCURE]

The UV Irradiation Source has world best efficiency using high power UV LED panel. It is available either as UV single frequency or as multi-frequency spectrum from 265 nm toward 405 nm.

FEATURES
■ Curing Area: 400 x 250 / 500 x 400 / 600 x 600 mm.
■ Curing Side: Top or/and bottom.
■ Curing Distance: Up to 150 mm.
■ Lamp: Efficient impingement lamp cooling.
■ Power Intensity: 300mW/cm2 at 50 mm distance from substrate.
■ No warmup required.
■ Lamp lifespan: approx. 20.000 hours equivalent to 1.000.000 production hours.
■ Electric Power Consumption: 1800 W.
■ Patented curing technology.
■ 2 power irradiation outputs.
■ Combined frequencies 265 nm => 405 nm.
■ Easy setup & stable process.
■ Cooling method: Fans cooling.
■ Maintenance free
■ Highly attractive COO/TCO.
