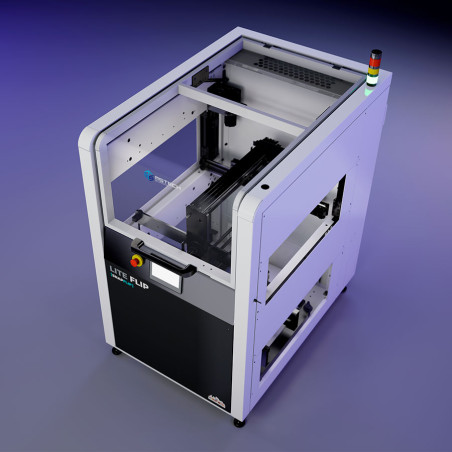

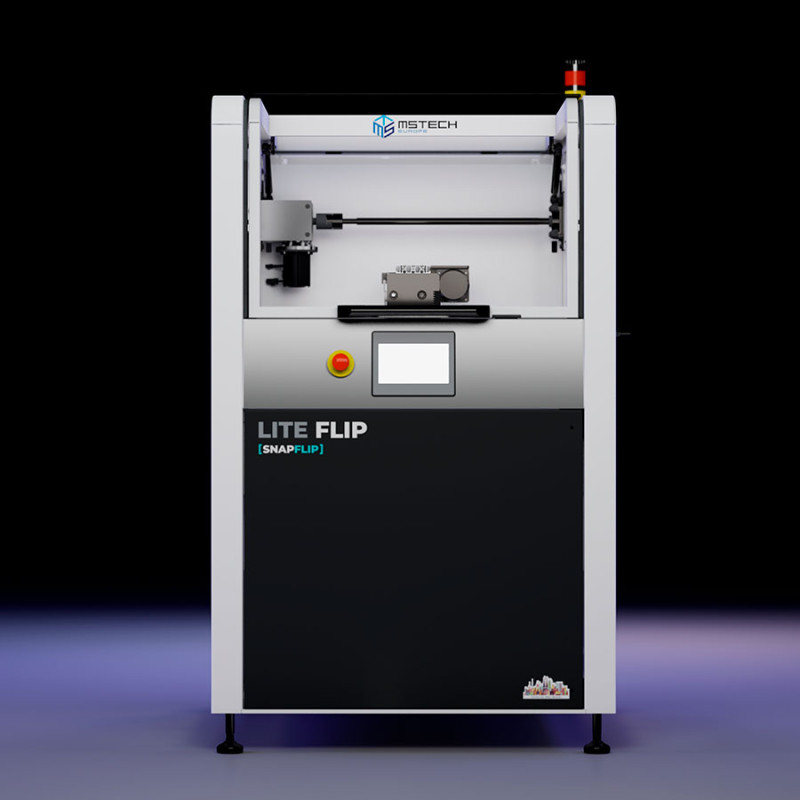

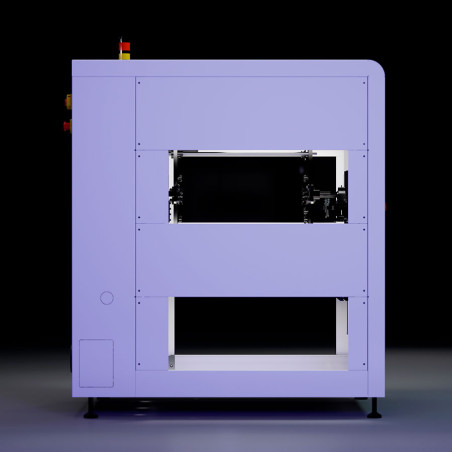

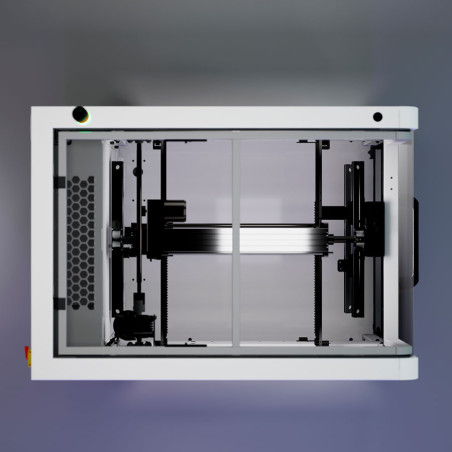

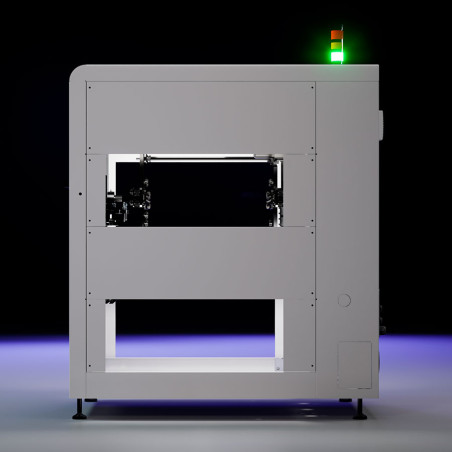

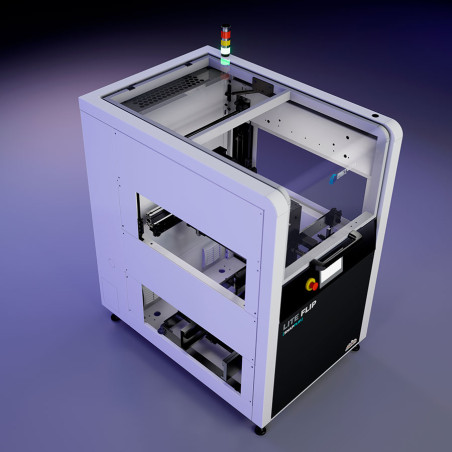

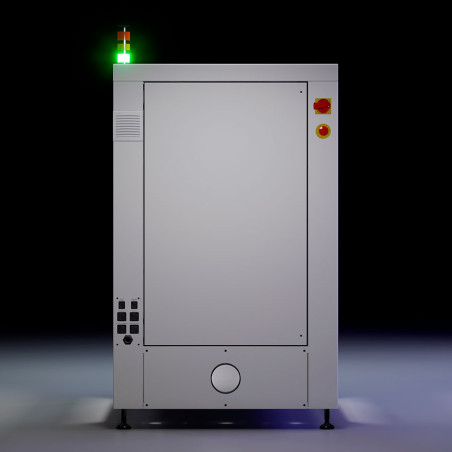

LITE FLIP 900
close

LITE FLIP 900

LITE FLIP-OPTION 900
STEADY AND PRECISE SCALING
Dimensions: 90 x 164 x 128 cm
Weight: 351 kg
Delivery time: 90 days
Log in for a quote

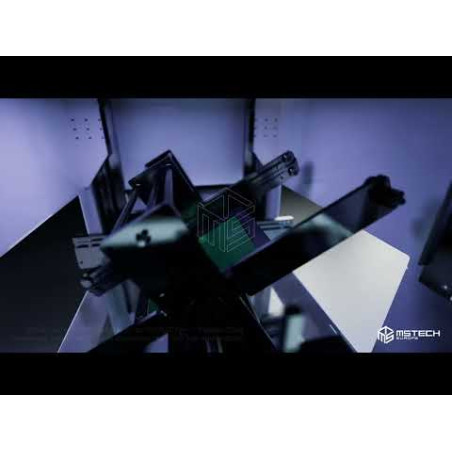

The enclosed design with a built-in torque limiter ensures the highest level of safety. For the coating process, an optional integrated film detection sensor allows for the definition of a
flipping strategy. For example, flipping only occurs if the coating material is present, with a flip time of less than 2 seconds.
Signal (protocols)
SMEMA
Voltage
230 VAC
SMEMA height
940-960 mm
Power
2.5 kW
Flow direction
left-right (optional right-left)
Edge clearence
5 mm
Conveyor type
Chain
Component clearence
150 mm top and bottom
Volumen
1.9 m³

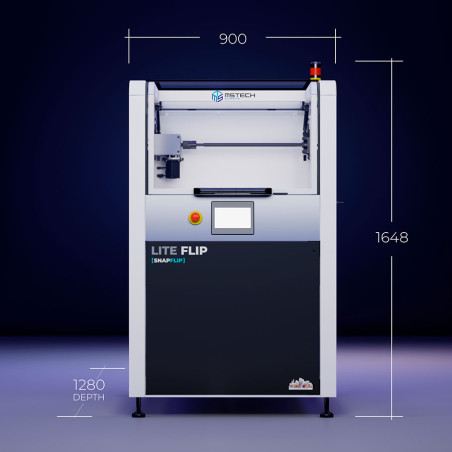

Largo
1280 mm
Ancho
900 mm
Alto
1648 mm
Peso
351 kg
