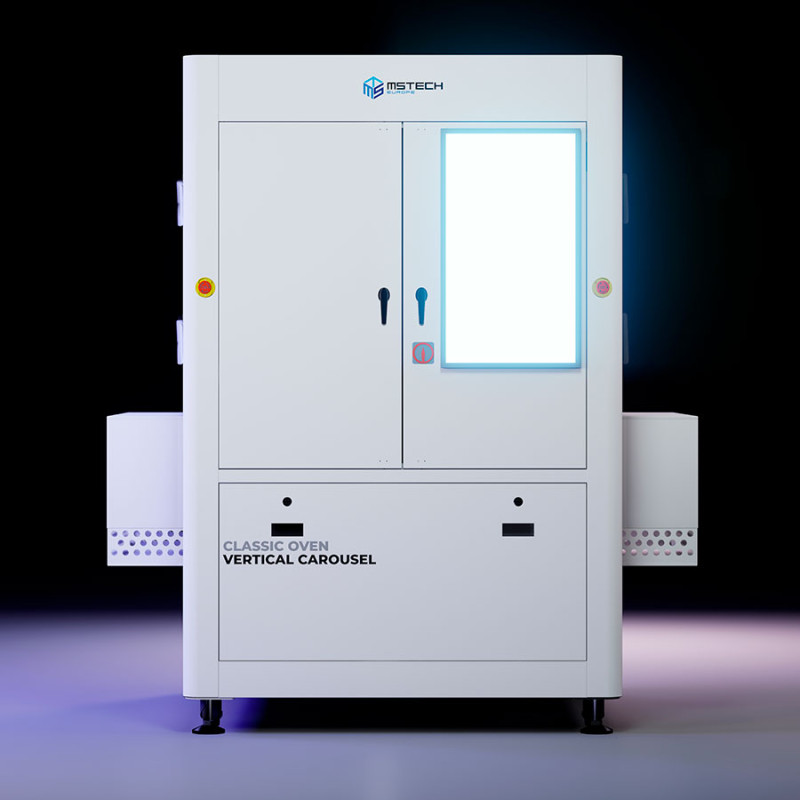

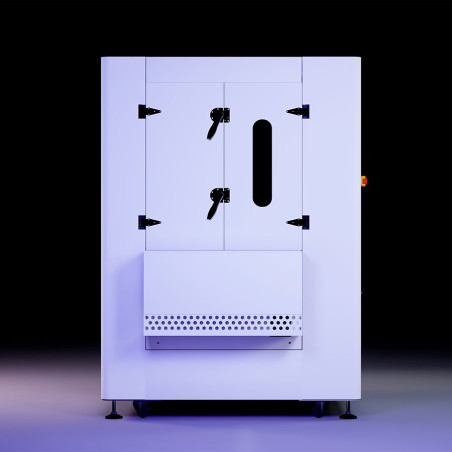

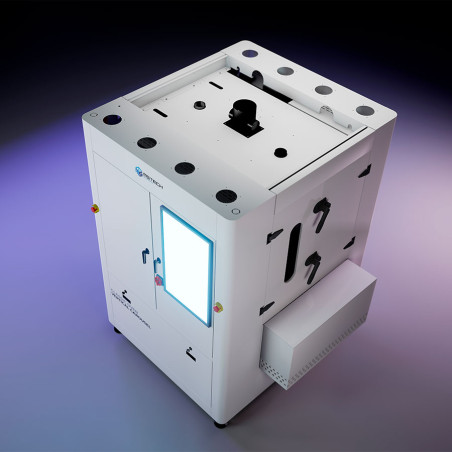

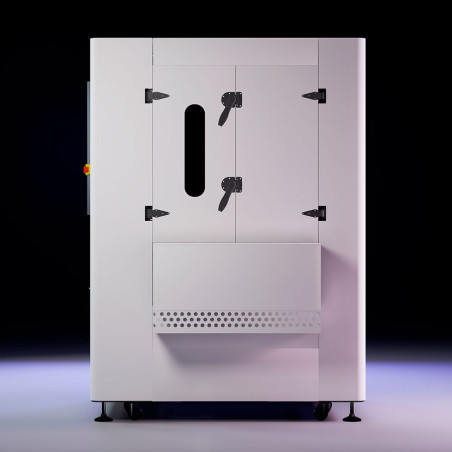

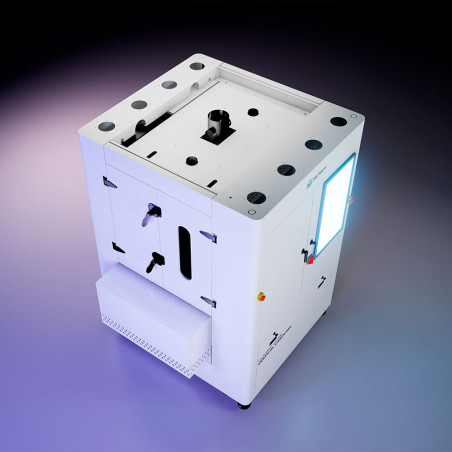

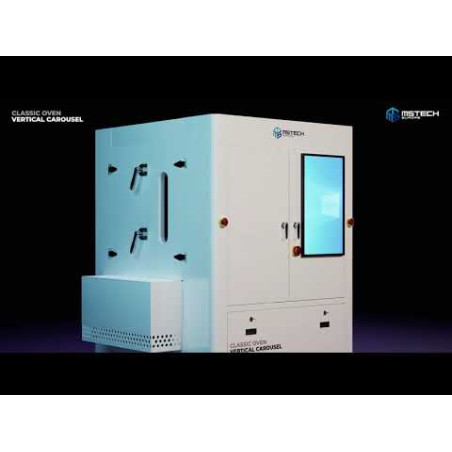

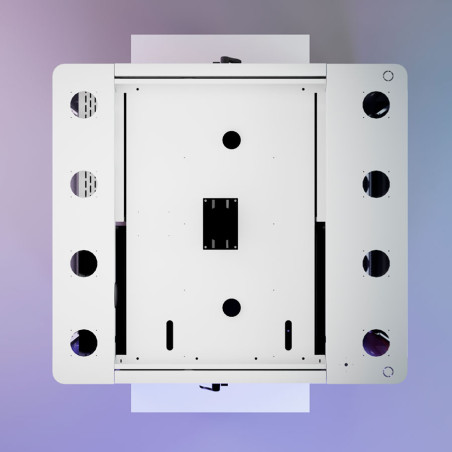

CLASSIC OVEN VERTICAL CAROUSEL

Name: CLASSIC OVEN VERTICAL CAROUSEL
Brand: mstechcorp
SKU: MST-Vertical CARUSEL

Reference: MST-Vertical CARUSEL

EAN:

AUTOMATIC VERTICAL CONVECTION THERMAL SYSTEM

Dimensions: 288 x 215 x 190 cm

Weight: 1900 kg

Delivery time: 150 days

Designed to optimize floor space usage when handling long-duration heat processes such as post-coating, potting
dispensing, encapsulation, or underfill.
Save energy and floor space without compromising high-precision temperature control.

CONFIGURATION FLEXIBILITY
» PCB size: 850x650 mm (LxW).
» Photoelectric sensor.
» Lifting.
» Perfect width adjustment mechanism.
» Fiber optic sensor.
» Dual lane option.
PRODUCTIVITY
» Improving temperature uniformity.
» Unique horizontal + up & down air.
» Embedded trend analysis.
» High thermal efficiency and uniformity.
» Heating layers: up to 64.
» Dual lane option.
» 130 positions.
» Conveyor: Top and bottom return.
» Multi product loading capability per slot.
» Adjustable inter slot distance
» Weight: Up to 5 kg per slot.
FULL INTERCONNECTED TRACEABILITY
SMARTBOX OPTION
OPTIMIZATION
» Floor space & facility savings.
» Energy efficient.

Volumen: 11.76 m³
Largo: 1900 mm
Ancho: 2880 mm
Alto: 2150 mm
Peso: 1900 kg

Download

MSTECH Europe-CLASSIC OVEN-verti

Download (1.26MB)
