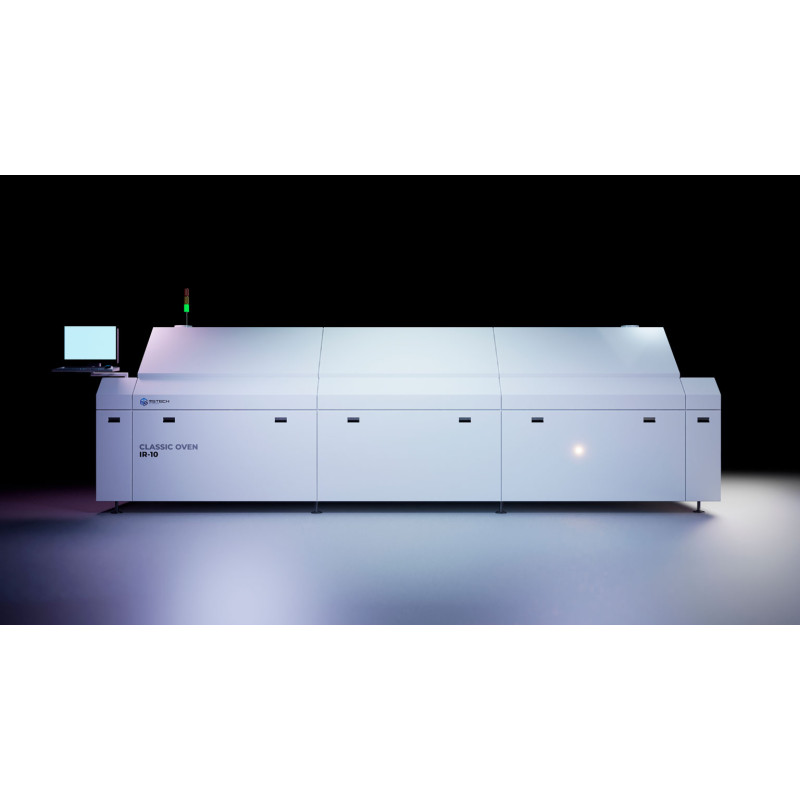

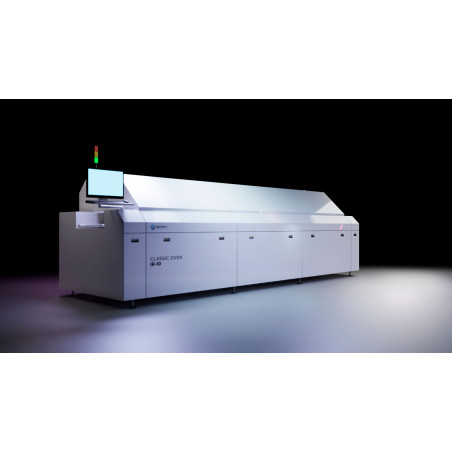

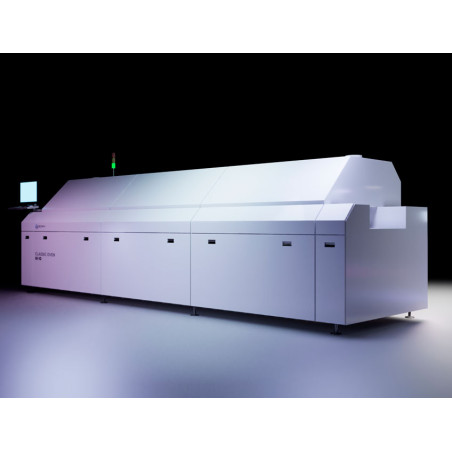

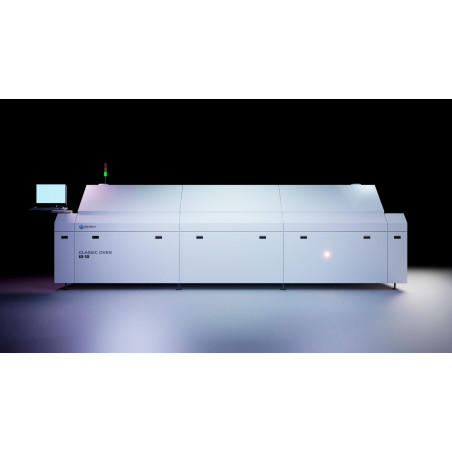

CLASSIC OVEN IR 10

The CLASSIC’S OVEN IR-10 delivers excellent temperature distribution and a stable heating process thanks to its unique and careful design. Its thermal convection ensures uniformity, energy savings, and optimal welding performance.

CONFIGURATION FLEXIBILITY
» PCB max. width: 50-460 mm.
» Component clearance +/- 30 mm.
» Preheating, soldering and cooling zones.
» Internal profiler: KIC.
» Heating zones lenght: 3892 mm.
» Heating zones quantity: Top 10, bottom 10.
» Cooling zones: 3 top, 3 bottom.
» Warm up time approx.: 30 minutes.
» Possibility to soldering two-sides PCB board and link with other SMT equipment (SMEMA).
» Chain dimension: 5 mm (Opcional 3 and 7).
» Ready to work with nitrogen.

PRODUCTIVITY
» Enhancing temperature uniformity.
» Security: Alarm and drop board & block board detection function.

FULL INTERCONNECTED TRACEABILITY: SMARTBOX OPTION
OPTIMIZATION: → Energy efficient.
