LITE-COOL
PRECISE COOLING PROCESS
Dimensions: 90 x 164 x 128 cm
Weight: 500 kg
Delivery time: 90 days
LITE COOL, with its efficient and controlled airflow, will reduce PCB temperature to the target value.
The solution can embed a thermal sensor to ensure that each PCB advances to the next process step only when the target temperature has been reached. The temperature value can be monitored and shared with the FIS/MES using our [SMARTBOX]
data exchange module.
Signal (protocols)
SMEMA
Voltage
230 VAC
Power
2.5 kW
Flow direction
left-right (optional right-left)
Edge clearence
5 mm
Conveyor type
Chain
Component clearence
150 mm top and bottom
Volumen
1.9 m³

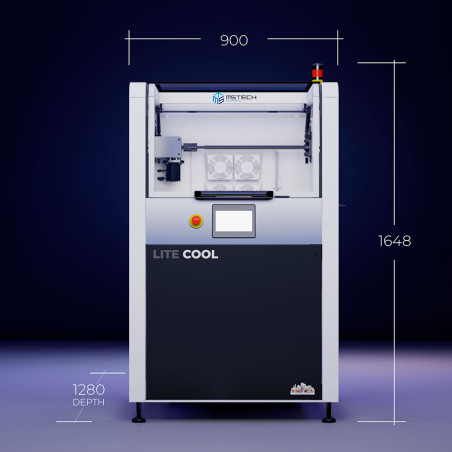

Largo
1280 mm
Ancho
900 mm
Alto
1648 mm
Peso
500 kg
