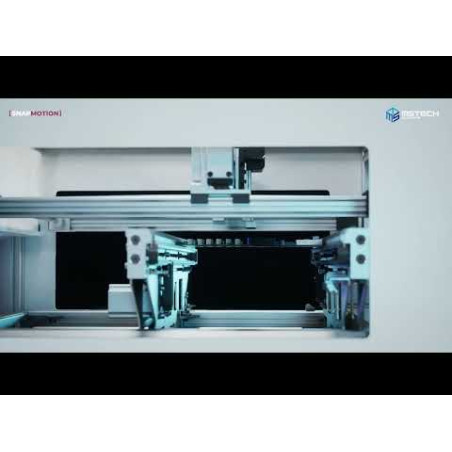

SNAP MOTION - BOTTOM

The SNAP MOTION platform is a high-accuracy, multi-axis gantry system with micrometric precision, designed for fast, repeatable, and controlled movement. It enables the integration
of multiple processes such as laser, localized cleaning, inspection, marking, dispensing, testing, curing, and more.

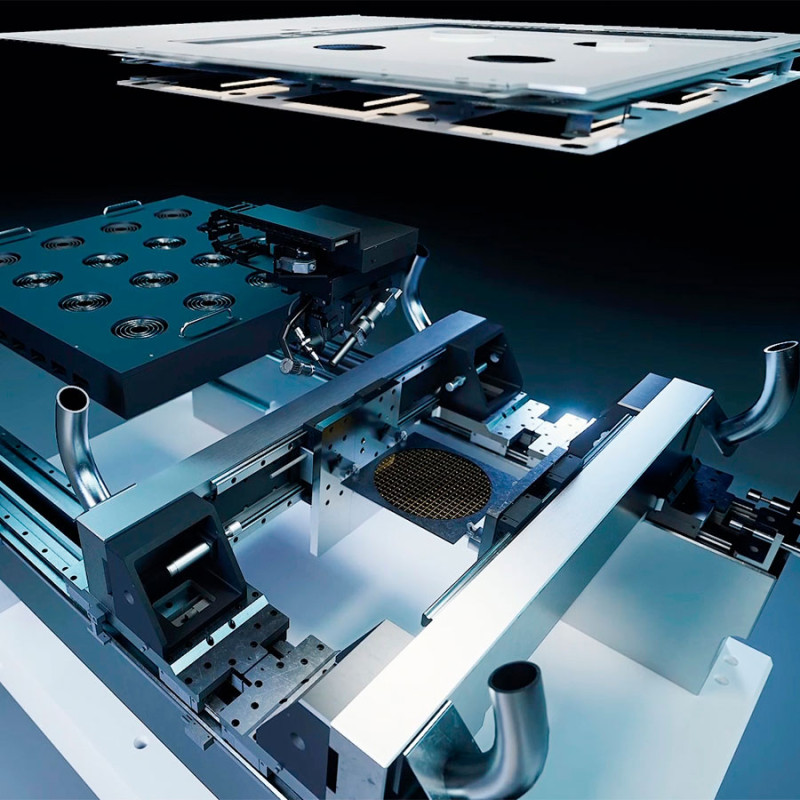

Bottom-gantry for SEMINFINITY & SMART INIFINITY: the gantry moves the PCB/pallet beneath a fixed process head for precise multi-step operations.

Both systems ensure high speed, stable motion, and exceptional positional repeatability, supporting Industry 4.0 automation and integration.

Bottom-Gantry
- Compatible with ISO 5/7 cleanroom.
- Effective stroke (X/Y/Z): 1000 × 1500 × 300 mm.
- Repeatability: ±0.5 µm.
- Accuracy: Down to 1 µm.
- Max. speed: 1000 mm/s (1.0 m/s).
- Payload: 25 kg.
- Approx. weight: 1400 kg.

Axis performance for bottom
X Axis:
Max. speed: 1.2 m/s.
Acceleration: 12 m/s².
Y Axis:
Max. speed: 1.8 m/s.
Acceleration: 15 m/s².
Z Axis:
Max. speed: 1.5 m/s.
Acceleration: 18 m/s².
