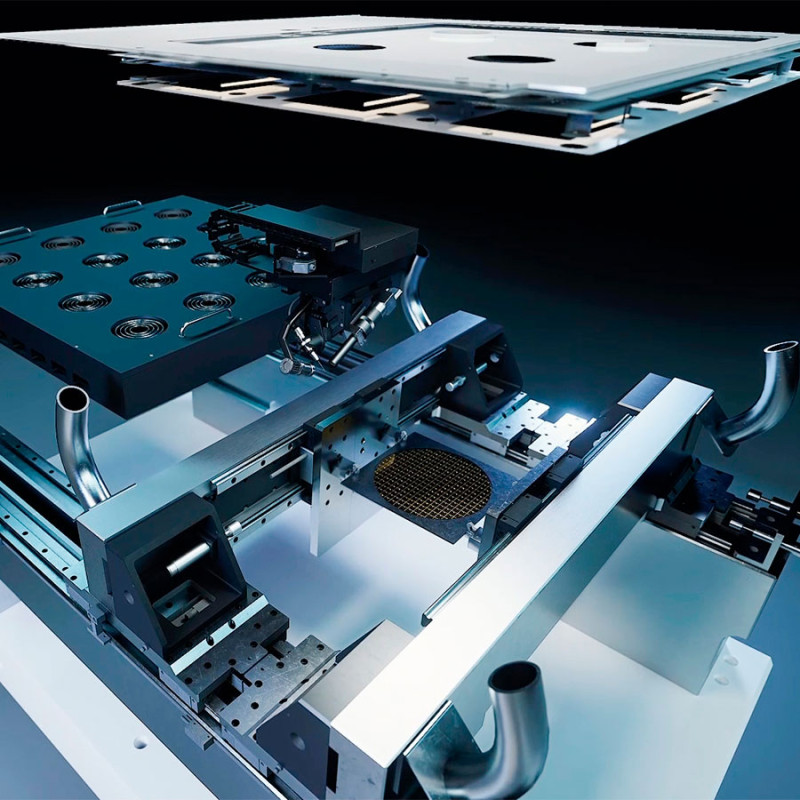

SNAP MOTION - TOP

The SNAP MOTION platform is a high-accuracy, multi-axis gantry system with micrometric precision, designed for fast, repeatable, and controlled movement. It enables the integration of multiple processes such as laser, localized cleaning, inspection, marking,
dispensing, testing, curing, and more.

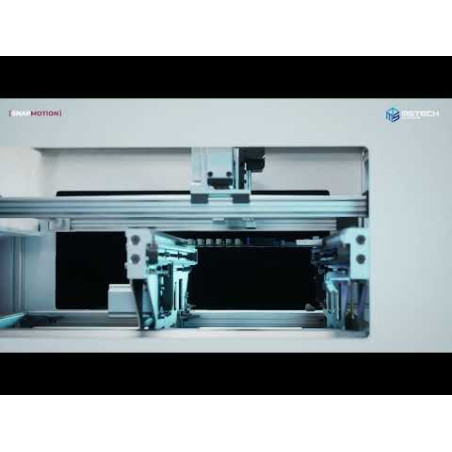

Top-gantry for 900 LITE and LITE KIT machines: the gantry moves the process technologies across the working area.

Top-Gantry
- Work Area (X/Y/Z): 500 × 500 x 150 mm (optional: 610 x 610 x 150 mm).
- Maximum payload: 12 kg.
- Gantry weight: 25 kg.
- Speed: 200 mm/s.
- Positioning accuracy: ±0.1 mm.
- Accuracy: 75 µm.
- Power consumption: 150 W.
