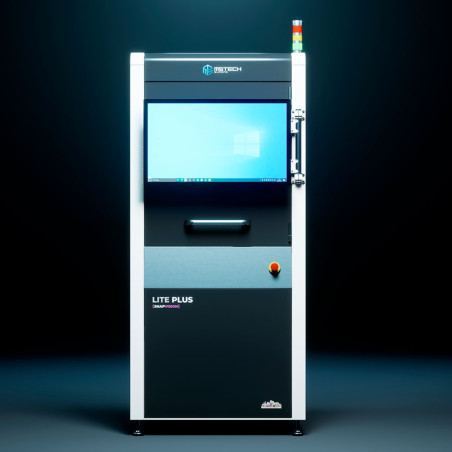

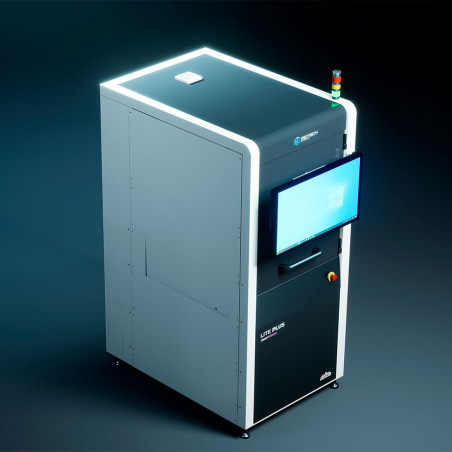

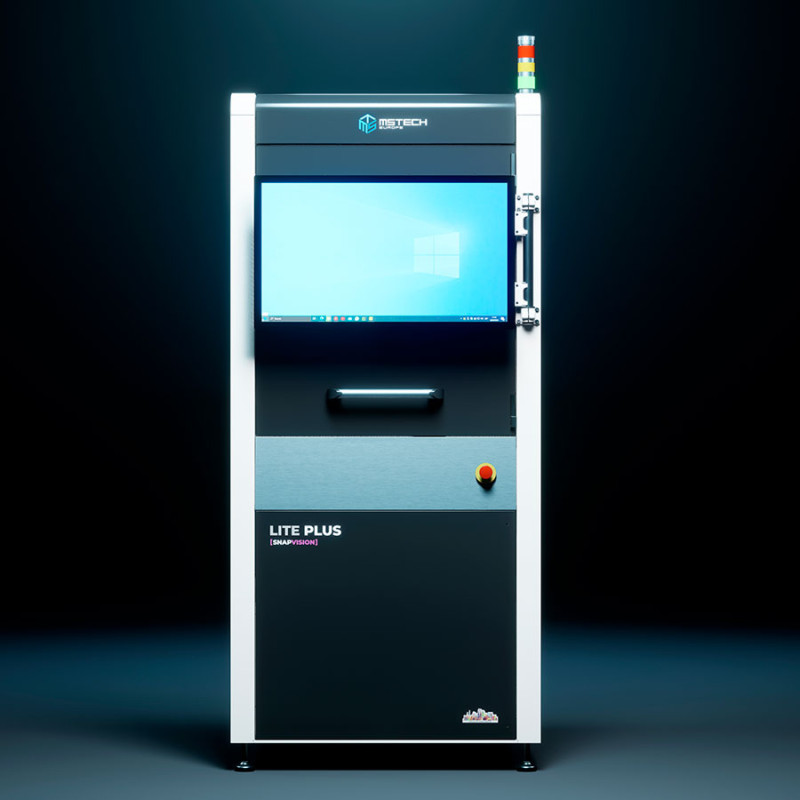

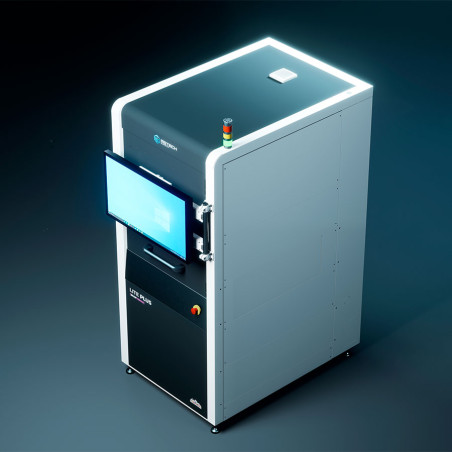

LITE PLUS [SNAP VISION] [SNAP FLIP]
close

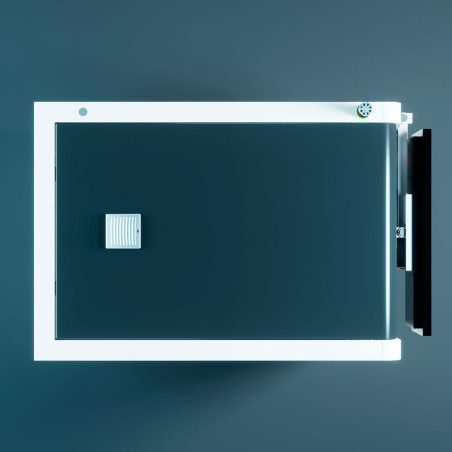

LITE PLUS [SNAP VISION] [SNAP FLIP]

LITE VISION 2.0
MULTI-PURPOSE VISION SYSTEM FOR INTEGRATION INTO AN EXISTING LINE
Delivery time: 120 days
Log in for a quote
Super-fast 2D AOI/ACI inspection and image analysis with advanced capabilities, including film thickness measurement, for coating, dispensing, component insertion, THT, and wave soldering process lines.

OPTIONS
■ Coating thickness trend measurement IPC compliant.
■ OK/NOK post inspection management.
■ Advance resolution (18 μm).
■ Extended size FOV up to 800 x 500 mm.
Signal (protocols)
SMEMA
Voltage
230 VAC
Power
2.5 kW
Flow direction
left-right (optional right-left)
Edge clearence
5 mm
Conveyor type
Belt
Chain
Component clearence
150 mm top and bottom
