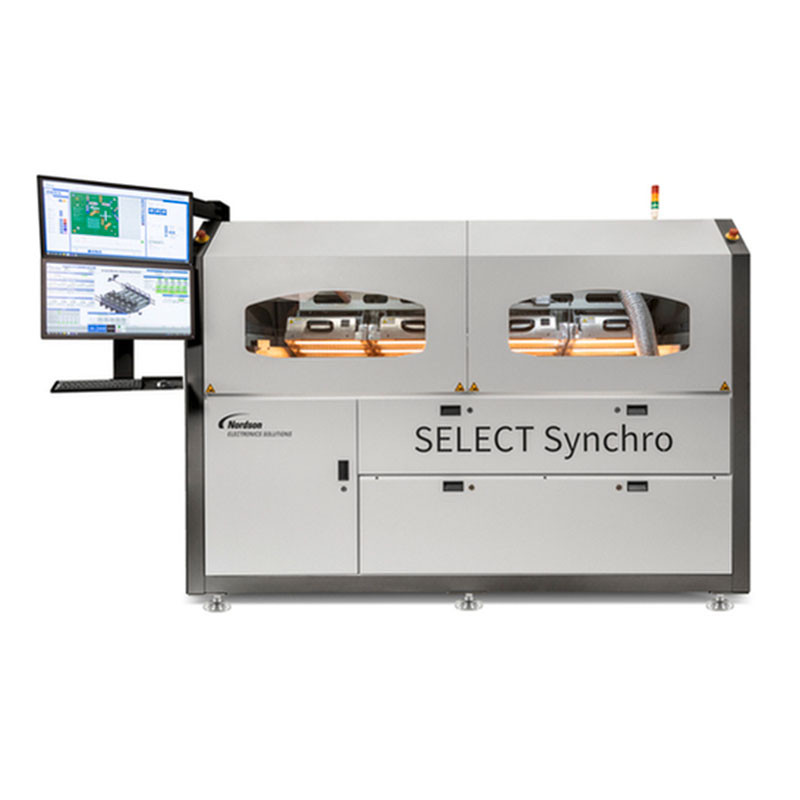

The SELECT Synchro system uses patent-pending synchronous motion technology to reduce conveyance time dramatically and boost throughput by 20-40% for most applications. Single-sided, double-sided through-hole, mixed-technology surface mount, and through-hole assemblies travel non-stop through the system for outstanding productivity.
Overview
Choose from the Synchro 3, 5, or 5 XL, offering three or five soldering stations. All Synchro systems process several boards simultaneously, in various quantities, using different alloys and nozzles or a single fixed nozzle size. The system configuration includes a Microdrop drop-jet fluxer and can accommodate multiple solder nozzles to apply lead-free and leaded alloys.
The SELECT Synchro:
⢠Fast. Boards continuously travel through the system, boosting throughput by 20-40% for most applications, with more gain possible if conveyance and soldering times are comparable.
⢠Easy to use. Automatically balances soldering work between soldering pots for increased throughput.
⢠Compact. Due to the minimal pot and fluxer motion in the conveyor direction, all Synchro systems reduce the system footprint, with the Synchro 5 reducing footprint by as much as 60% compared to traditional multi-station systems.
⢠Flexible.Depending on the system, supports up to three or five solder pots, each with the ability to accommodate different nozzle sizes, eliminating the need to change nozzles.
⢠Dependable. Forms reliable solder joints without overheating neighboring components to protect product performance.
