SOLDERING LINE

SOLDERING LINE

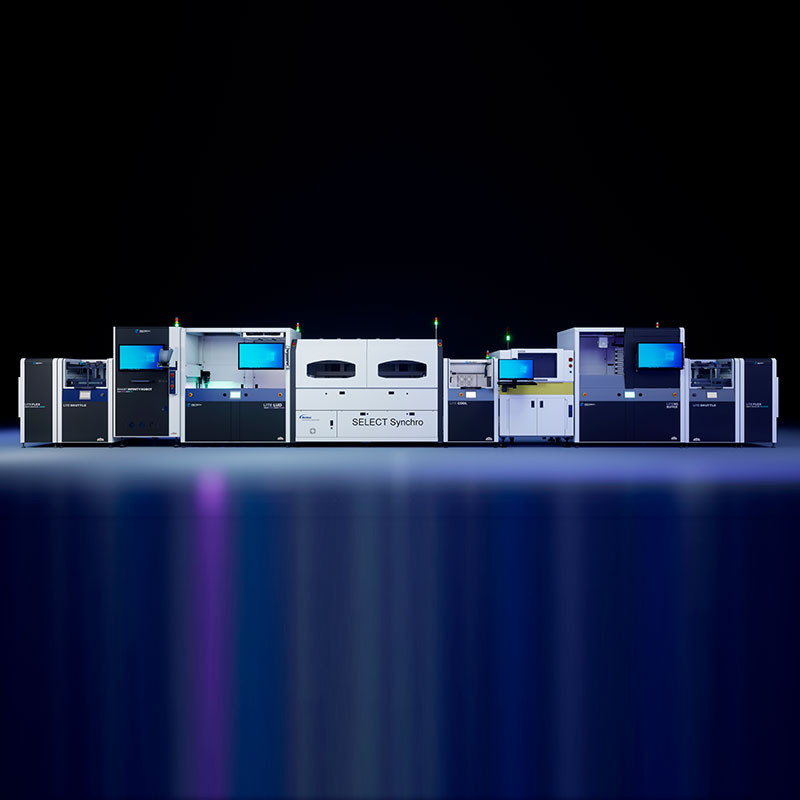

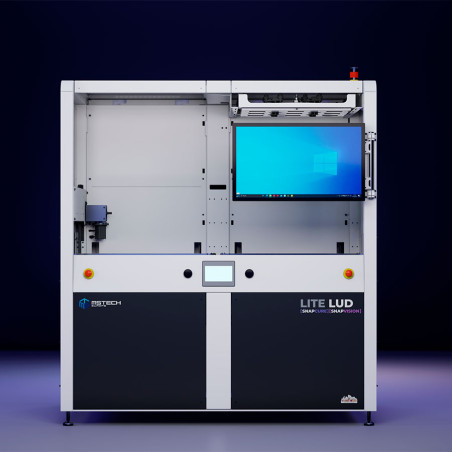

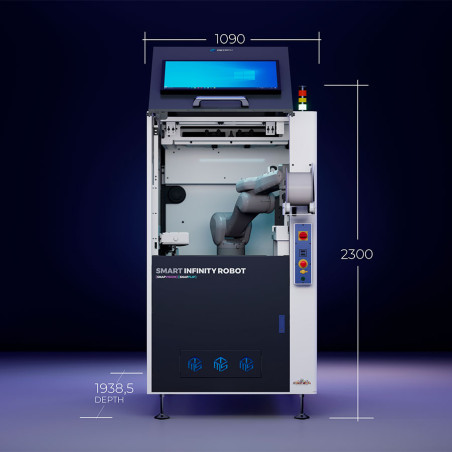

This soldering line is designed for high efficiency PCB assembly, integrating automation, precision soldering, and quality control. The concept focuses on flexibility, traceability, and zero-defect manufacturing, combining loading/unloading systems, robotic handling, selective soldering, cooling, and advanced inspection.

This pack contains

Log in for a quote

APPLICATIONS

  • Electronics manufacturing for automotive, industrial, and consumer devices.
  • Mixed-technology PCBs (through-hole + SMT).
  • High-reliability sectors requiring stringent quality standards (e.g., aerospace, medical).
  • Medium to high-volume production with automated material flow and minimal operator intervention.

TYPICAL PARAMETERS

  • Board Size Range: 50 × 50 – 450 × 350 mm (adjustable)
  • Cycle Time: ~15–30 seconds per PCB (depending on soldering complexity).
  • Soldering Temperature: 250–270 °C (wave soldering).

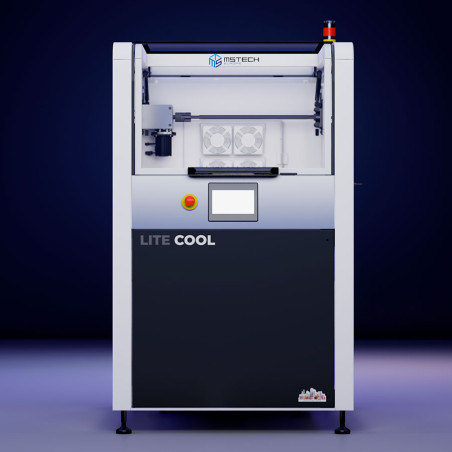

  • Cooling Time: Configurable, typically 30-60’’.

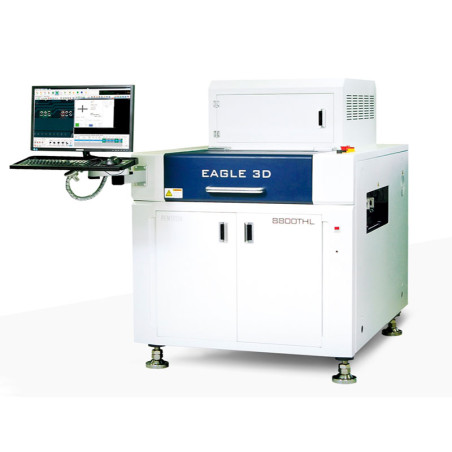

  • Inspection Accuracy: ±10 μm (Pemtron AOI).
  • Line Throughput: Up to 800–1200 boards/hour (depending on configuration).
