COATING LINE
close

COATING LINE

coating-line

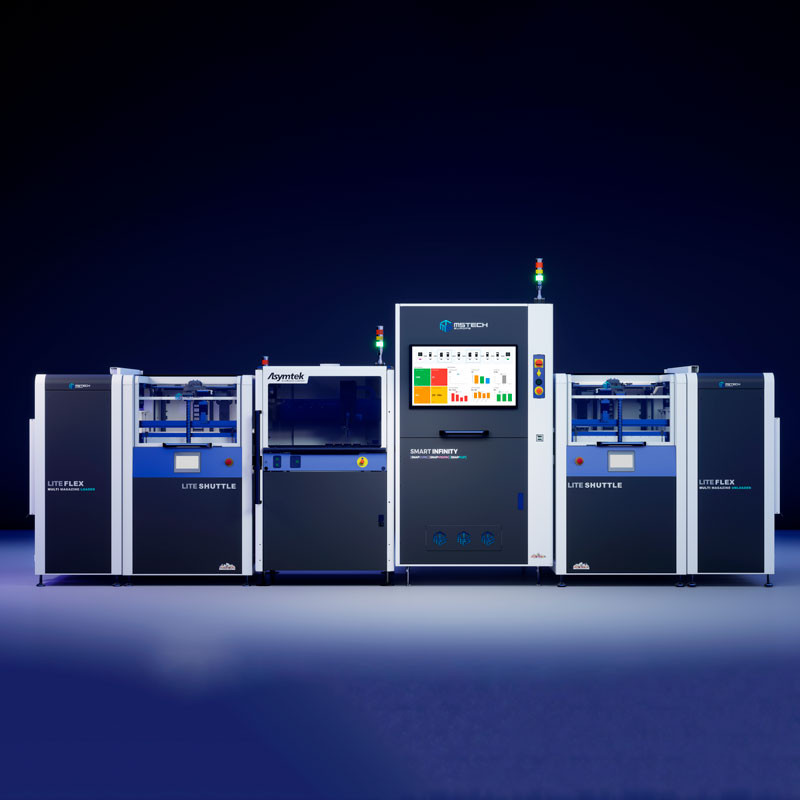

This coating line is designed for automated conformal coating processes in electronics manufacturing.

It integrates precision dispensing, curing, inspection, and board flipping to ensure complete coverage and high reliability. The concept emphasizes automation, flexibility, and traceability, reducing manual intervention and ensuring consistent quality.

TYPICAL PARAMETERS

  • Board Size Range: 50 × 50 to 450 × 350 mm.
  • Coating Accuracy: ±0.5 mm.
  • Cycle Time: ~30–60 seconds per PCB (depending on complexity).
  • UV Curing Time: 5–15 seconds per side.
  • Inspection Resolution: HD vision, down to 40 μm.
  • Line Throughput: Up to 120 boards/hour (depending on configuration).
  • Data Connectivity: Real-time MES monitoring

This pack contains

Log in for a quote

APPLICATIONS

  • Conformal coating for PCBs in automotive, aerospace, industrial, and consumer electronics.
  • Protection against moisture, dust, chemicals, and temperature variations.
  • Ideal for high-reliability sectors requiring stringent environmental protection.
  • Medium to high-volume production with automated material handling and curing
