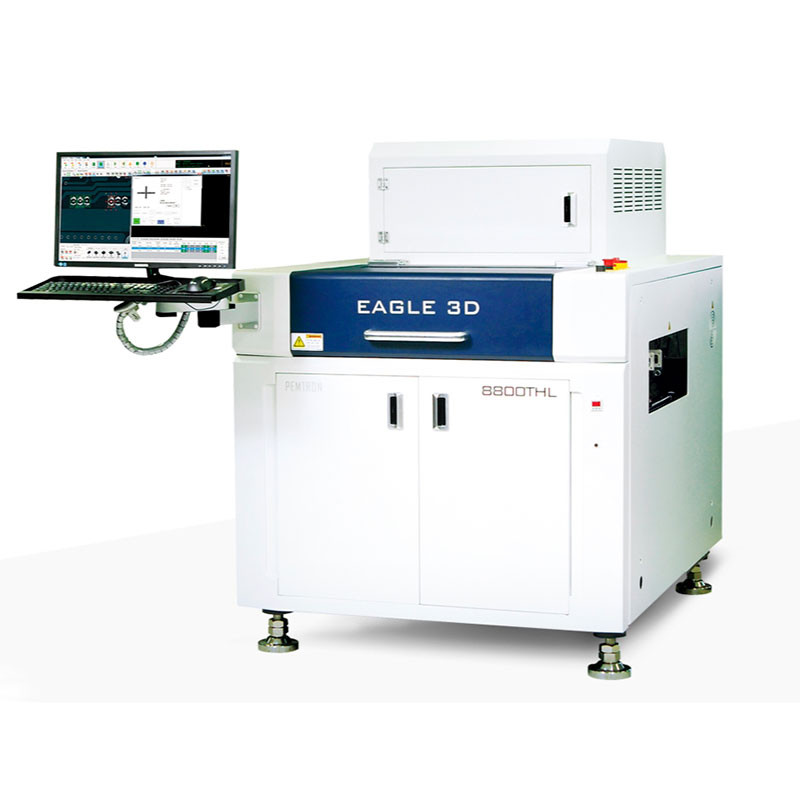

PEMTRON EAGLE 3D 8800TH
close

PEMTRON EAGLE 3D 8800TH

PEMEAGLE3D_8800THL
Through hole 3D AOI system bottom side head 3D AOI
Weight: 1250 kg
Delivery time: 90 days
Log in for a quote
- Bottom Camera Head Gantry
- Simultaneous Inspection Algorithm (2D and 3D)
- Telecentric Lens offers Higher Detection Accuracy
- High-Speed CPU & Image Processing
- User-Friendly GUI
- Built in Library Management System
- Offline Real-Time Debug Station

3D Measurements Free from Shadows and Reflections
- The EAGLE 3D 8800 AOI uses 8-way projection for 3D measurements on all models to minimize
errors due to shadow effects, and performs 100% 2D & 3D concurrently in all FOV areas.
- This significantly reduces the false call while providing near-perfect detection.

Accurate and convenient inspection using side camera
Four high-definition cameras on the side and a dedicated algorithm optimized for both use and
side inspection is available for real-time inspection.
- 4-Way Side Camera (Optional)
- Internal bridge detection not found in Top Camera
- Connector internal detectable
- Convenient Teaching Using Existing Algorithm

27mm high part 3D measurement/inspection
EAGLE 3D AOI offers the option of inspecting up to 30mm in height components with a unique PEMTRON technology.

Peso
1250 kg
