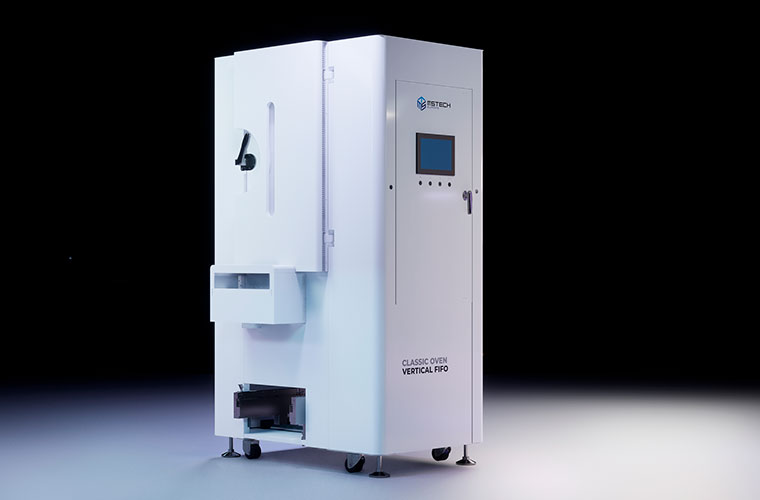

Vertical curing oven half size carousel
The CLASSIC OVEN’s vertical FIFO design transforms the flat heating space into a three-dimensional one, saving energy and space. Its user-friendly touchscreen interface ensures precise system operation, reliability, continuous curing processes, and adjustable curing times.
SOLUTIONS
Save energy and floor space
Save energy and floor space without compromising high-precision temperature control.
Unique concept
CONFIGURATION FLEXIBILITY
- Up to 4 temperature sensors in entry conveyor.
- Heating layers: up to 20 layers.
- Perfect width adjustment mechanism.
PRODUCTIVITY
- High thermal efficiency and uniformity.
- Unique horizontal + up & down air transportation.
- The 3 level protection heating system prevents overheating.
- Lifting.
FULL INTERCONNECTED TRACEABILITY (
OPTION)
- Process Tracker embedded software platform with on demand communication & KPI definition.
- Live process parameters log.
- Embedded trend analysis.
OPTIMIZATION
- Floor space & facility savings.
- Energy efficient.
- EPA filter.
- Nitrogen system.
Process monitoring options
- Offline programming.
- Remote control platform.
Thanks to our technology, all recorded data can be shared with an MES/FIS environment and displayed through our embedded Process Tracker, providing enhanced process capability visibility via a local KPI display system.
Features
- PCB size: 710×500 mm (LxW).
- Numbers of slots: multi product loading capability per slot.
- Weight: Up to 5 kg per slot.
- Heating control: Multi zone PID closed-loop control + high-frequency pulse.
- Conveyors: Top and bottom return.
- Layer height: 700 mm. Standard: 20 layers.
- Adjustable inter slot distance: ex. 45 mm (14 layers) – 25 mm (20 layers).
- Sensors: 4 temperature.
- Warm up time: Approx. 15-30 min.
- Baking temperature: ≤200 ºC.
- Conveying direction: L<R.
- Conveyor height: 900±20 mm.
- Conveyor motor: Servo motor.
- Pushing motor: Step motor.
- Barcode reader
- Safety: CE-compliant safety measures and protection devices.
Applications

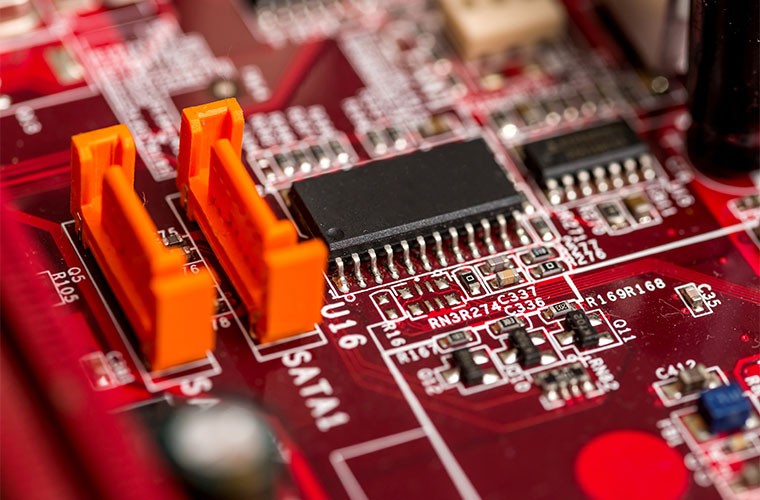

Preheat and cure of underfill, dispensing, potting, glue, corner bonding, thermal paste, gap filler, coating and ink, etc.
LITE LINE GENERIC SPECIFICATIONS
- Component clearance <150 mm top and bottom.
- PCBA-pallets dimensions: up to (710×540) mm. Max. pallet weight: 20 kg.
- Automatic adjust conveyor width from software.
- Adjustable on demand electrical power inlet.
- No air pressure required.
- Centralized 125 mm extraction duct.
- High-robustness welded frame chassis: Ensures durability and stability.
- Uniform designed electric & PLC cabinet: Streamlined and standardized for consistency.
- Uniform HMI display: User-friendly interface for seamless operation.
- Heavy duty chain conveyor: Built to handle rigorous demands.
- Integrated return conveyor: Enhances workflow efficiency.
- SMEMA protocol compliance (Optional HERMES)
- Automated safety shutter: Provides added safety during operations.
- Physio ergonomics approved: Designed with user comfort in mind.
- Coherent air flow management: Ensures optimal performance and cooling.
- CE risk analysis, report & certification performed by external certified auditor.
