LITE LINE
Fully integrated modular concept system
- PCBA-pallets dimensions: up to (710x540) mm.
- Max. pallet weight: 20 kg.
- Component clearance: <150 mm top and bottom.
- Integrated return conveyor: Enhances workflow efficiency.
Advanced Ultra Violet curing system.
SOLUTIONS

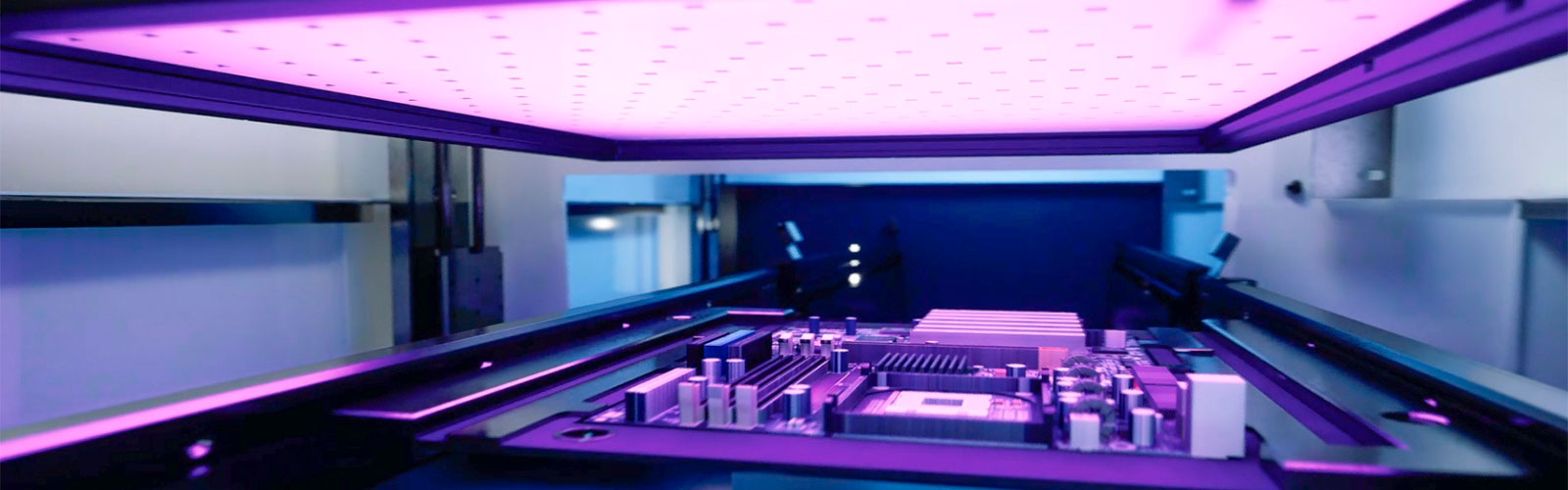

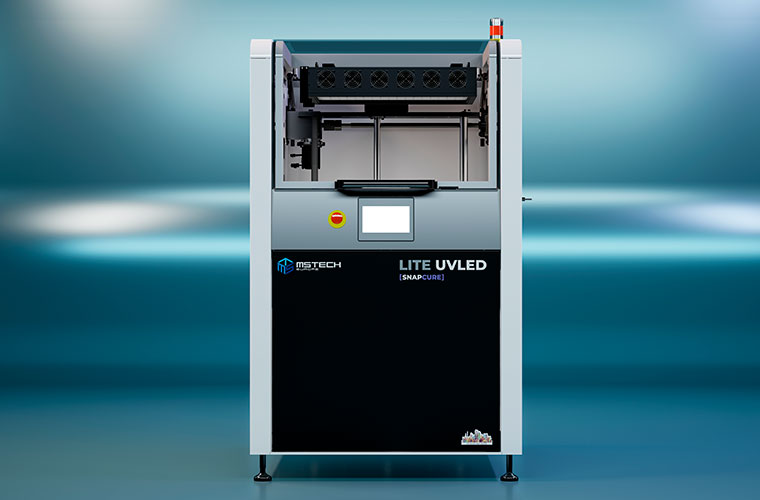

LITE UVLED [SNAPCURE] UV Process at its best within a LITE Modular Concept.
The High-Performance Flat Panel Light UV Source is integrated into our Lite Modular System. To meet different production needs, a simple but flexible control system for transport conveyors and a range of options and accessories is built in.
To match various PCB/carrier form factors, our control management system provides high operational flexibility. Further optional accessories are available to deploy monitored processes and data exchange with your MES/FIS.
OUR TECHNOLOGY
Unique concept & size.
CONFIGURATION
- 2 power irradiation outputs.
- Combined frequencies 265 nm => 405 nm.
- Simple setup & over time stable process configuration.
PRODUCTIVITY
- Super-fast curing approx. 10 seconds.
- Lamp lifespan: approx. 20.000 hours equivalent to 1.000.000 production hours.
- Maintenance free ≡ Highly attractive COO/TCO .
FULL INTERCONNECTED TRACEABILITY (
OPTION)
- Process Tracker embedded software platform with on demand communication & KPI definition.
- Live process parameters log.
- Embedded trend analysis.
OPTIMIZATION
- Floor space: 900×1180 mm & facility savings.
- Energy efficient.
- Eco-friendly.
Options
LED radiation source option:
- Power output: GEN 3 or GEN 5.
- Single peak frequency: 365, 385 ,395, 405 nm.
- Multi frequency: UVC + UVA Spectrum & IR.
Process monitoring options
- Lamp temperature / product temperature.
- Cabinet temperature & humidity.
- Radiation delivered power output.
- Radiation frequency recording.
- ESD level.
- Others on demand.
Thanks to our technology, all recorded data can be shared with an MES/FIS environment and displayed through our embedded Process Tracker, providing enhanced process capability visibility via a local KPI display system.
Radiation panel dimension options:
- Standard: 250 x 400 mm & 400 x 500 mm.
- On demand: from 5 x 5 mm to 800 x 500 mm.
Application
Cure of any UV curable materials including conductive, structural bonding and dielectric materials, coatings, gel, thermal dissipation materials and inks.
Advantages
- UV dose simple-production concept.
- Process stability and repeatability are assured with a minimal number of parameters.

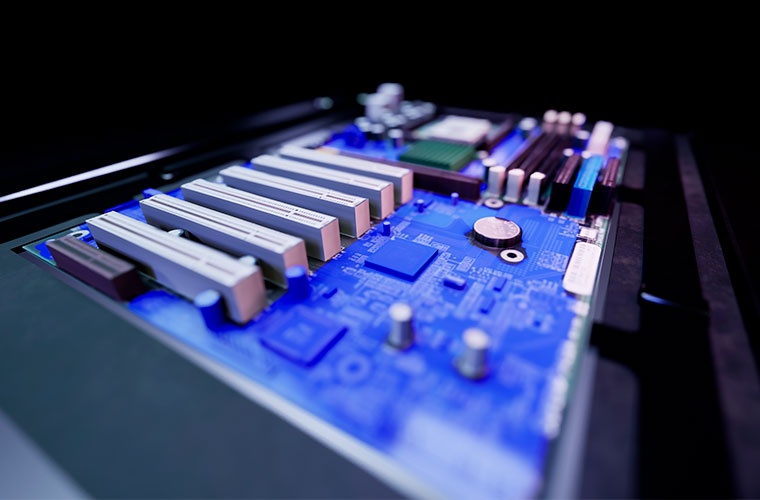

- Full board area covered within one shot – uniform coverage: no wrinkles, no shadows.
- No reflector, longer lamp lifetime.
- UV irradiation head with powerful LEDs – covers full board area.
- Efficient curing area up to 800 x 500 mm at a distance of 10 to 400 mm.
LITE LINE GENERIC SPECIFICATIONS
- Component clearance <150 mm top and bottom.
- PCBA-pallets dimensions: up to (710×540) mm. Max. pallet weight: 20 kg.
- Automatic adjust conveyor width from software.
- Adjustable on demand electrical power inlet.
- No air pressure required.
- Centralized 125 mm extraction duct.
- High-robustness welded frame chassis: Ensures durability and stability.
- Uniform designed electric & PLC cabinet: Streamlined and standardized for consistency.
- Uniform HMI display: User-friendly interface for seamless operation.
- Heavy duty chain conveyor: Built to handle rigorous demands.
- Integrated return conveyor: Enhances workflow efficiency.
- SMEMA protocol compliance (Optional HERMES)
- Automated safety shutter: Provides added safety during operations.
- Physio ergonomics approved: Designed with user comfort in mind.
- Coherent air flow management: Ensures optimal performance and cooling.
- CE risk analysis, report & certification performed by external certified auditor.
