LITE LINE
Fully integrated modular concept system
- PCBA-pallets dimensions: up to (710x540) mm.
- Max. pallet weight: 20 kg.
- Component clearance: <150 mm top and bottom.
- Integrated return conveyor: Enhances workflow efficiency.

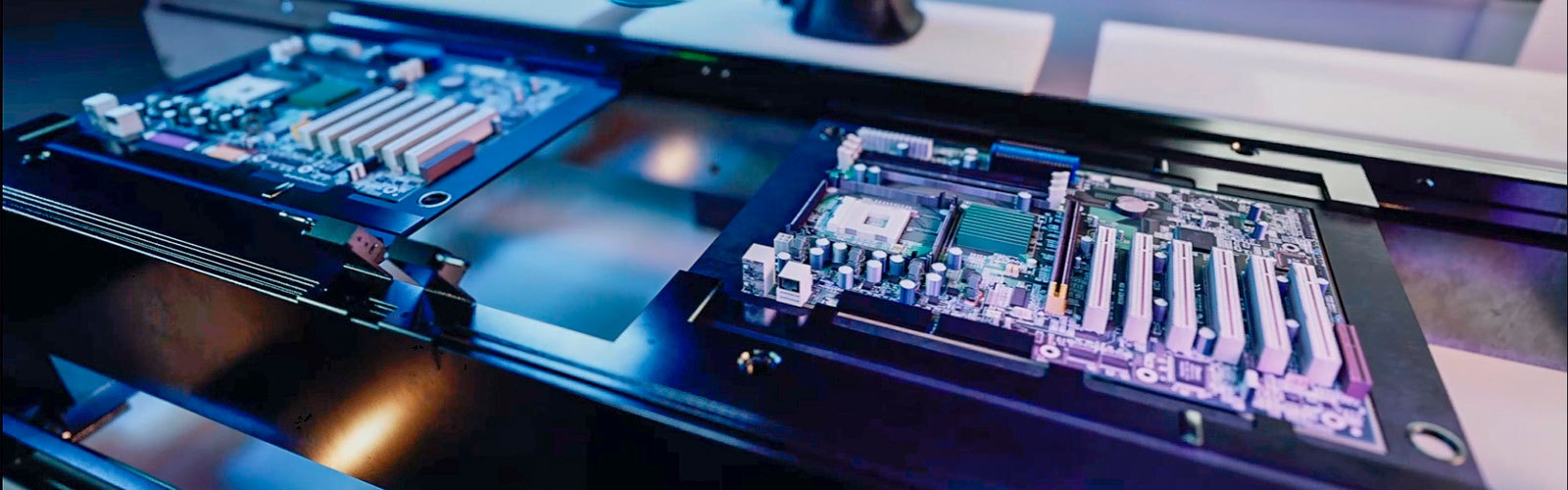

PCB’S loader and unloader station.

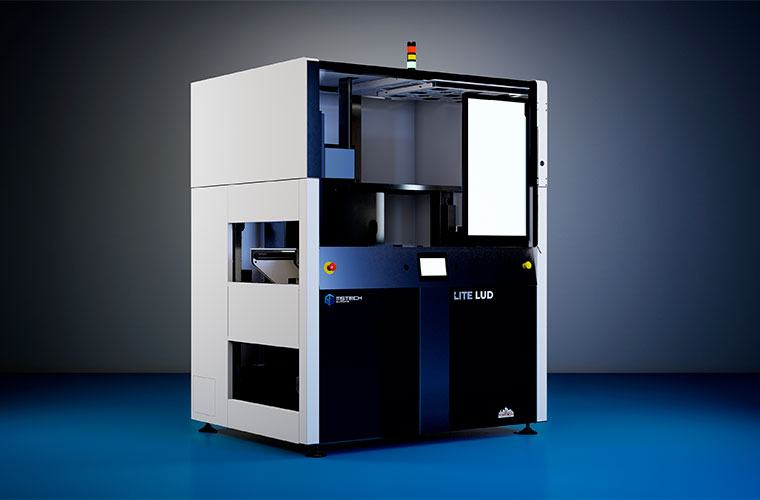

LITE LUD is a centralized loading/unloading station that can be operated manually or automated via COBOT integration. This station facilitates centralized communication to an MES/FIS host, managing the traceability of the entire process line. It includes image analysis to confirm loading/process integrity, traceability, and a heads-up centralized KPI display.
Human interaction with the equipment has been thoroughly studied, focusing on both safety and ergonomics, as part of a collaborative project with Bureau Veritas and a certified physiotherapist.
SOLUTIONS
Centralized line management process station
Unique concept & size
CONFIGURATION
- Multi-language.
- Full human interactivity safety.
- Optimized ergonomics with physiotherapist analysis.
PRODUCTIVITY
- Conveying speed: 300-2000 mm/min.
- 1 loading segment and 1 unloading segment.
FULL INTERCONNECTED TRACEABILITY (
OPTION)
- Process Tracker embedded software platform with on demand communication & KPI definition.
- Live process parameters log.
- Embedded trend analysis.
OPTIMIZATION
- Energy efficient.
- Eco-friendly.
Options
→This radiation source has world’s best efficiency.
LED radiation source options:
- Power output: GEN 3 or GEN 5.
- Single peak frequency: 365, 385, 395, 405 nm.
- Multi-frequency: UVC + UVA spectrum & IR.
Process monitoring options
- Offline programming.
- Remote control platform.
Thanks to our technology, all recorded data can be shared with an MES/FIS environment and displayed through our embedded Process Tracker, providing enhanced process capability visibility via a local KPI display system.
→Super-fast 2D inspection and image analysis with advanced capabilities for coating, dispensing, component insertion, THT, and wave soldering process lines.
Applications
Coating/Dispensing lines, wave soldering or selective soldering lines, exotic component integration lines.
LITE LINE GENERIC SPECIFICATIONS
- Component clearance <150 mm top and bottom.
- PCBA-pallets dimensions: up to (710×540) mm. Max. pallet weight: 20 kg.
- Automatic adjust conveyor width from software.
- Adjustable on demand electrical power inlet.
- No air pressure required.
- Centralized 125 mm extraction duct.
- High-robustness welded frame chassis: Ensures durability and stability.
- Uniform designed electric & PLC cabinet: Streamlined and standardized for consistency.
- Uniform HMI display: User-friendly interface for seamless operation.
- Heavy duty chain conveyor: Built to handle rigorous demands.
- Integrated return conveyor: Enhances workflow efficiency.
- SMEMA protocol compliance (Optional HERMES)
- Automated safety shutter: Provides added safety during operations.
- Physio ergonomics approved: Designed with user comfort in mind.
- Coherent air flow management: Ensures optimal performance and cooling.
- CE risk analysis, report & certification performed by external certified auditor.
