LITE LINE
Fully integrated modular concept system
- PCBA-pallets dimensions: up to (710x540) mm.
- Max. pallet weight: 20 kg.
- Component clearance: <150 mm top and bottom.
- Integrated return conveyor: Enhances workflow efficiency.
Introducing our uniform Modular Lane concept, dedicated to backend processes such as coating, dispensing, wave soldering (including selective), depaneling, or exotic component insertion, among others.
Experience the perfect blend of robustness, efficiency, and user-centric design with our LITE LINE System. Ideal for modern production environments, it guarantees high performance and uptime in every process stage.

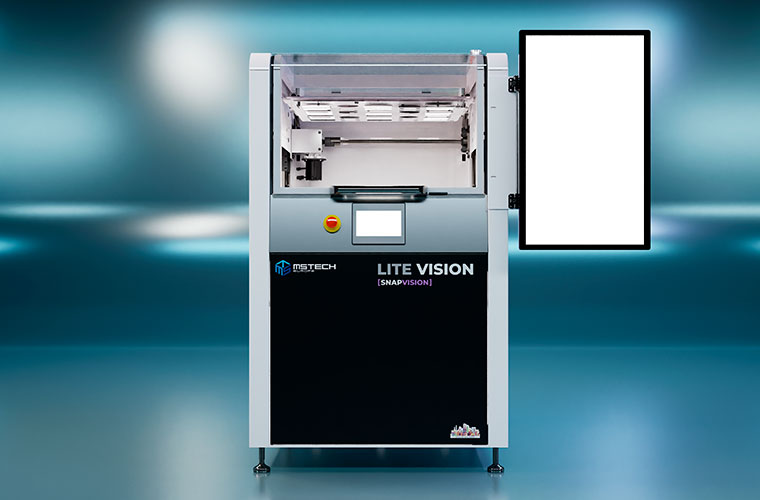

Multi-purpose vision engine for ultra-high speed inspection and on-demand image analysis
Super-fast 2D inspection and image analysis with advanced capabilities for coating, dispensing, component insertion, THT, and wave soldering process lines.
SOLUTIONS
Vision system for integration into a process line.
High speed 2D AOI / ACI with film thickness measurement capability.
OUR TECHNOLOGY
Unique Concept.
CONFIGURATION FLEXIBILITY
- Automated AI-based vision engine with pre-configured functionalities for quality inspection in coating, dispensing, THT, and wave soldering processes.
- FOV size up to 500×450 mm (710×540 mm FOV optional).
- Multi-language 32’’ intuitive HMI.
PRODUCTIVITY
- 4 seconds cycle time.
- Traceability reading while inspection.
FULL INTERCONNECTED TRACEABILITY (
OPTION)
- Process Tracker embedded software platform with on demand communication & KPI definition.
- Live process parameters log.
- Embedded trend analysis.
OPTIMIZATION
- Floor space & Energy efficient.
- Eco-friendly.
Options
- Coating thickness trend measurement IPC compliant.
- User friendly repair station.
- Review station.
Process monitoring options
- Offline programming.
- Remote control platform.
Thanks to our technology, all recorded data can be shared with an MES/FIS environment and displayed through our embedded Process Tracker, providing enhanced process capability visibility via a local KPI display system.
- OK/NOK post inspection management.
- Advance resolution (18 µm).
- Extended size FOV up to 800 x 500 mm.
Application
- AOI (Automatic Optical Inspection) Dispensing, potting, glue, gap filler, underfill, screw, top THT, wax, foreign particles, 1D/2D codes and more.
- ACI (Automatic Coating Inspection) Coating, nano coating and silicone.
Features
- Resolution standard down to 50 um.
- Standard FOV up to 500 x 450 mm.
- Intuitive programming UI.
- inspection time less than 4 sec.
- Ultra-thin coating compatible.
- Light source: multi-LED illumination.
- No periodical calibration of camera needs.
LITE LINE GENERIC SPECIFICATIONS
- Component clearance <150 mm top and bottom.
- PCBA-pallets dimensions: up to (710×540) mm. Max. pallet weight: 20 kg.
- Automatic adjust conveyor width from software.
- Adjustable on demand electrical power inlet.
- No air pressure required.
- Centralized 125 mm extraction duct.
- High-robustness welded frame chassis: Ensures durability and stability.
- Uniform designed electric & PLC cabinet: Streamlined and standardized for consistency.
- Uniform HMI display: User-friendly interface for seamless operation.
- Heavy duty chain conveyor: Built to handle rigorous demands.
- Integrated return conveyor: Enhances workflow efficiency.
- SMEMA protocol compliance (Optional HERMES)
- Automated safety shutter: Provides added safety during operations.
- Physio ergonomics approved: Designed with user comfort in mind.
- Coherent air flow management: Ensures optimal performance and cooling.
- CE risk analysis, report & certification performed by external certified auditor.
